Specification:-
- Voltage: 3V to 18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 uA at 18 V
- Temperature range; 100 nA at 18 V
SKU: RH8543A

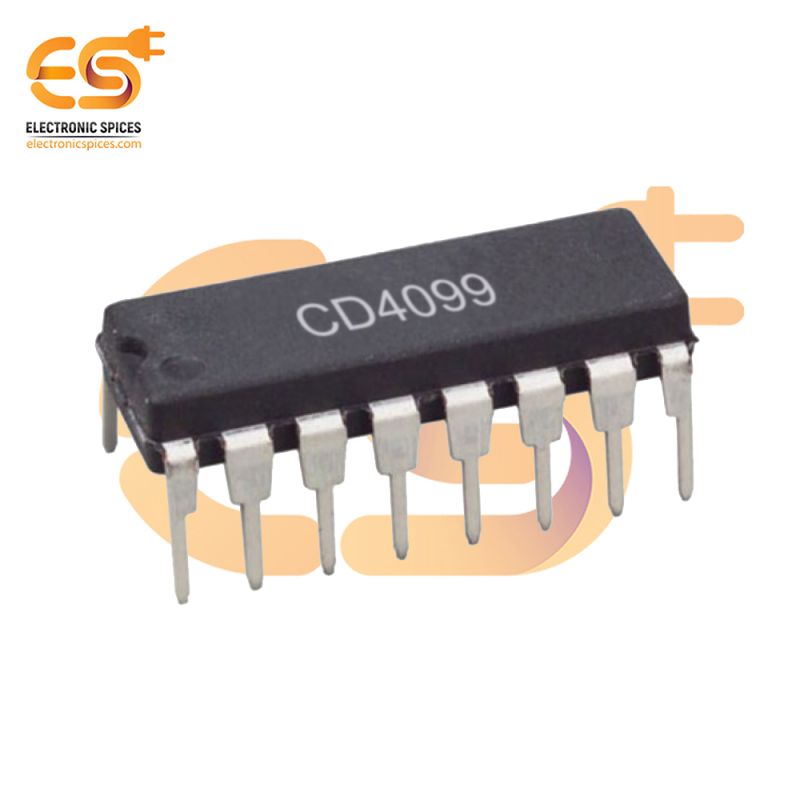

CD4099 8-bit Addressable Latch IC (DIP-16 Package)
The CD4099 is an 8-bit addressable latch IC housed in a DIP-16 package, designed to store data in a digital system while allowing for selective addressing and data manipulation. This IC consists of eight individual D-type latches, each capable of storing one bit of data. The data is stored and latched when the appropriate address and control signals are applied. The CD4099 features a set of control pins, including an address input (A0–A2), a latch enable (LE) input, and a data input (D). The latch enable input allows data to be stored when activated, while the address inputs select which latch to enable for data storage. This makes it ideal for applications that require specific bits of data to be latched independently, such as memory banks or digital signal storage. The IC operates with a supply voltage range from 3V to 18V, making it compatible with a wide range of digital logic systems. It employs CMOS technology, ensuring low power consumption and high noise immunity, which enhances the reliability of the device in power-sensitive and noise-prone environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Storage register capability
