Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation – tPHL, tPLH = 75 ns (typ.) at VDD = 10 V
SKU: ZG8543A

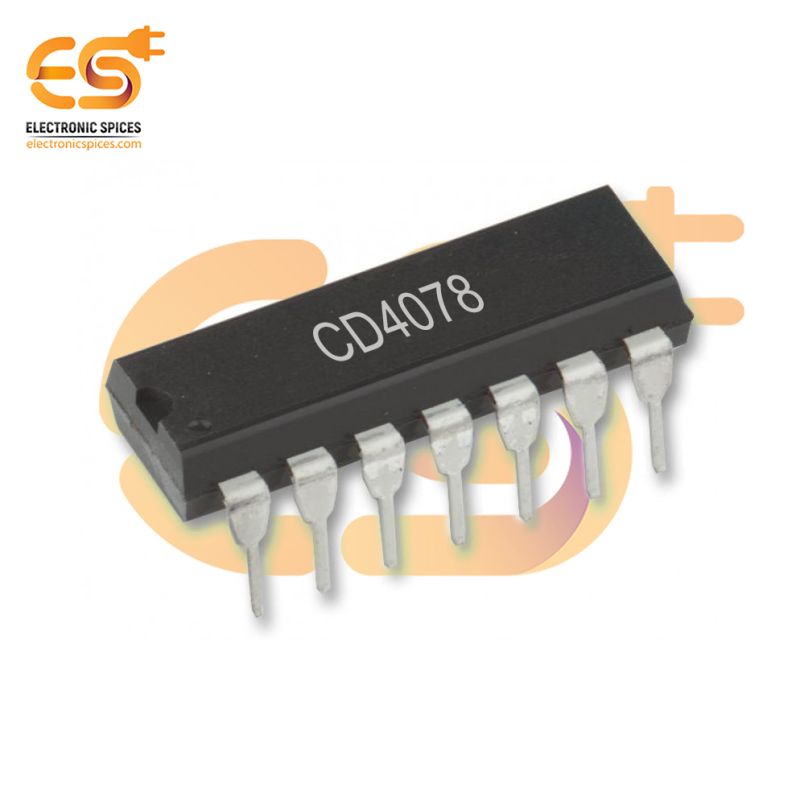

CD4078 8-Input NOR Gate IC (DIP-14 Package)
The CD4078 is an 8-input NOR gate IC housed in a DIP-14 package, designed for digital logic applications that require multiple input conditions to be logically negated. This IC contains a single 8-input NOR gate, which produces a low (logic "0") output when any of its inputs are high (logic "1"). The output will be high (logic "1") only when all of its inputs are low (logic "0"). The CD4078 is ideal for use in applications where complex logical conditions need to be evaluated and negated, such as in digital signal processing, decision-making circuits, and data routing. Its 8-input configuration enables it to evaluate a large number of conditions simultaneously, making it useful for more sophisticated logic systems or for simplifying the design of circuits that require multiple logical inputs. Operating with a wide supply voltage range of 3V to 18V, the CD4078 is versatile and compatible with different logic families, ensuring its applicability across various digital systems. The IC is built using CMOS technology, which provides low power consumption and high noise immunity, resulting in reliable performance in power-sensitive and noisy environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- No limit on input rise and fall times
- Standardized, symmetrical output characteristics
