CD40 SERIES DIP IC
Showing 1–12 of 64 results
.jpg)
.jpg)
.jpg)
.jpg)
-

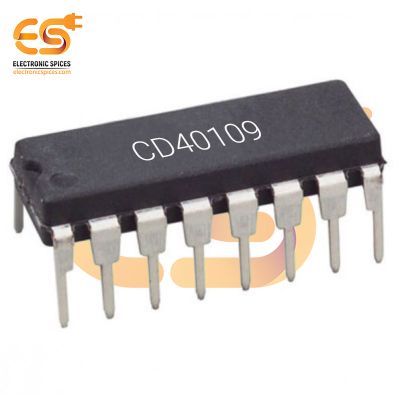

![CD40109 CMOS Quad Low-to-High Voltage Level Shifter IC (DIP-16 Package)]()
CD40109 CMOS Quad Low-to-High Voltage Level Shifter IC (DIP-16 Package)
Rs. 59.00Specification:-
- Noise Margin (Full Package-Temperature Range):
- 1 V at VCC = 5 V, VDD = 10 V
- 2 V at VCC = 10 V, VDD = 15 V
- 5-V, 10-V, and 15-V Parametric Ratings
- 1 µA at 18 V Over Full Package-Temperature Range
- 100 nA at 18 V and 25°C
- 100% Tested for Quiescent Current at 20 V
-
![CD4027 Dual JK Flip Flop IC (DIP-16 Package)]()
CD4027 Dual JK Flip Flop IC (DIP-16 Package)
Rs. 29.00Specification:-
- Supply Voltage: 3V to +18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 µA at 18 V
- Temperature range; 100 nA at 18 V and 25°C
-
![CD4069 Hex Inverter IC (DIP-14 Package)]()
CD4069 Hex Inverter IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage: 3V to 18V
- Medium speed operation: tPHL, tPLH = 30 ns at 10 V (Typical)
- 100% Tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V
- Temperature range, 100 nA at 18 V and 25°C
-
![CD4059 Programmable Divide-by-N Counter IC (DIP-24 Package)]()
CD4059 Programmable Divide-by-N Counter IC (DIP-24 Package)
Rs. 169.00Specification:-
- Function: Counter
- Voltage: 3V to 18V
- 5-V and 10-V parametric ratings
- Max. input leakage current of 1 µA at 15 volts
- Operating temperature range: -55°C to 125 °C
- Synchronous Programmable N Counter:N = 3 to 9999 or 15,999
-
![CD4518 Dual BCD Up Counter IC (DIP-16 Package)]()
CD4518 Dual BCD Up Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Maximum input current of 1 µA at 18 V
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
-
![CD4017 Decade Counter IC (DIP-16 Package)]()
CD4017 Decade Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Wide supply voltage range: 3.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- Input Voltage: −0.5 VDC to VDD +0.5 VDC
- Storage Temperature: −65°C to +150°C
- DC Supply Voltage: −0.5 VDC to +18 VDC
- Power Dissipation: Dual-In-Line: 700 mW
- Lead Temperature: 260°C
-
![CD4051 Single 8-channel Multiplexer/Demultiplexer IC (DIP-16 Package)]()
CD4051 Single 8-channel Multiplexer/Demultiplexer IC (DIP-16 Package)
Rs. 29.00Specification:-
- Bandwidth: 20 MHz
- Supply curren: 0.04 uA
- 100% Tested for Quiescent Current at 20 V
- 5 V, 10 V, and 15 V Parametric Ratings
- Maximum Input Current of 1 µA at 18
- Input/output continuous current (Max): 10 mA
- Temperature range : -55°C to 125°C
-
![CD4082 Dual 4 Input AND Gate IC (DIP-14 Package)]()
CD4082 Dual 4 Input AND Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation – tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
-
![CD4504 Hex Voltage Level Shifter IC (DIP-16 Package)]()
CD4504 Hex Voltage Level Shifter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Maximum input current of 1 µA at 18 V
- 5V, 10 V, and 15 V parametric ratings
- 100% tested for quiescent current @ 20 V
- Meets all requirements of JEDEC Standard No. 13B
- Up and down level-shifting capability
-
![CD4023 Triple 3-Input NAND Gate IC (DIP-14 Package)]()
CD4023 Triple 3-Input NAND Gate IC (DIP-14 Package)
Rs. 49.00Specification:-
- Output type: Push-Pull
- Input type: Standard CMOS
- Data rate (Max): 8 Mbps
- Supply Voltage: 3V to +18V
- 5-V, 10-V, and 15-V parametric ratings
- Operating temperature range: -55°C to +125°C
- Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
-
![CD4068 CMOS 8-Input NAND/AND Gate IC (DIP-14 Package)]()
CD4068 CMOS 8-Input NAND/AND Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- High Voltage Type (20V Rating)
- Medium Speed Operation – TPHL, TPLH = 75ns (Typ.) at VDD = 10V
- 5V, 10V and 15V Parametric Ratings
- Maximum Input Current of 1µA at 18V
- Temperature Range; 100nA at 18V and +25°C
- Noise Margin (Over Full Package/Temperature Range) – 1V at VDD = 5V – 2V at VDD = 10V – 2.5V at VDD = 15V
-
![CD40106 Hex Schmitt Trigger Inverter IC (DIP-14 Package)]()
CD40106 Hex Schmitt Trigger Inverter IC (DIP-14 Package)
Rs. 29.00Specification:-
- Input type: Schmitt-Trigger
- Output type: Push-Pull
- Supply voltage range: 3V to 18V
- Data rate: 24 (Mbps)
- Hysteresis Voltage (Typical):
- 0.9 V at VDD = 5 V
- 2.3 V at VDD = 10 V
- 3.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V Parametric Ratings
- For Quiescent Current at 20 V
