Specification:-
- Voltage: 3V to 18V
- Medium speed operation: tPHL, tPLH = 30 ns at 10 V (Typical)
- 100% Tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V
- Temperature range, 100 nA at 18 V and 25°C
SKU: PP8543A

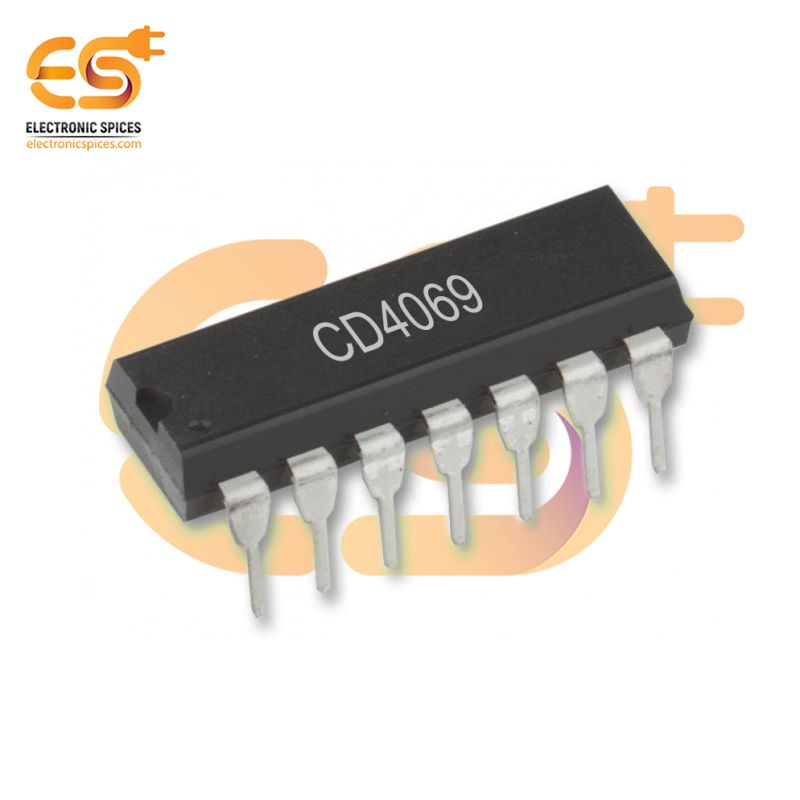

CD4069 Hex Inverter IC (DIP-14 Package)
The CD4069 is a Hex Inverter IC housed in a DIP-14 package, containing six independent inverters. Each inverter in the IC performs a logical NOT operation, which means it outputs the opposite logic level of its input. When the input is high (logic "1"), the output will be low (logic "0"), and when the input is low (logic "0"), the output will be high (logic "1"). This IC is commonly used in digital logic circuits where signal inversion or negation is required. It is essential for applications such as signal processing, logic gate construction, and creating complex combinational circuits. The CD4069 is also useful for interfacing components that require signal inversion or for designing systems with complementary logic states. The CD4069 operates within a supply voltage range of 3V to 18V, making it compatible with a variety of digital systems. Built using CMOS technology, the IC offers low power consumption, high noise immunity, and reliable operation, which is ideal for use in both power-sensitive and noisy environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
