CD40 SERIES DIP IC
Showing 1–12 of 55 results
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
-
![CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)]()
CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)
Rs. 59.00Specification:-
- Wide supply voltage range 3V to 15V
- High noise immunity 0.45 VDD (typ.)
- Low power TTL compatibility
- Carry and borrow outputs for easy expansion to N-bit by cascading
-
![CD40109 CMOS Quad Low-to-High Voltage Level Shifter IC (DIP-16 Package)]()
CD40109 CMOS Quad Low-to-High Voltage Level Shifter IC (DIP-16 Package)
Rs. 59.00Specification:-
- Noise Margin (Full Package-Temperature Range):
- 1 V at VCC = 5 V, VDD = 10 V
- 2 V at VCC = 10 V, VDD = 15 V
- 5-V, 10-V, and 15-V Parametric Ratings
- 1 µA at 18 V Over Full Package-Temperature Range
- 100 nA at 18 V and 25°C
- 100% Tested for Quiescent Current at 20 V
-
![CD4043 Quad NOR R-S Latch Tri-state IC (DIP-16 Package)]()
CD4043 Quad NOR R-S Latch Tri-state IC (DIP-16 Package)
Rs. 29.00Specification:-
- Supply Voltage (VDD): −0.5V to +18V
- Input Voltage (VIN): −0.5V to VDD +0.5V
- Storage Temperature Range (TS): −65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL): 260°C
-
![CD4073 Triple 3-Input AND Gate IC (DIP-14 Package)]()
CD4073 Triple 3-Input AND Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 µA at 18 V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation – tPHL, tPLH = 75 ns (typ.) at VDD = 10 V
-
![CD4046 Micropower Phase Locked Loop IC (DIP-16 Package)]()
CD4046 Micropower Phase Locked Loop IC (DIP-16 Package)
Rs. 29.00Specification:-
- Voltage: 3V to 18V
- Low frequency drift: 0.04%/°C (typ.) at VDD = 10 V
- High VCO linearity: <1% (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- 5-V, 10-V, and 15-V parametric ratings
- Operating temperature range: −55°C to +125°C
- Very low power consumption: 70 µW (typ.) at VCO fo = 10 kHz, VDD = 5 V
- Operating frequency range up to 1.4 MHz (typ.) at VDD = 10 V, RI = 5 k ohm
-
![CD4040 12-Stage Ripple Carry Binary Counter IC (DIP-16 Package)]()
CD4040 12-Stage Ripple Carry Binary Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Type: Binary
- Function: Counter
- Supply Voltage: 3V to +18V
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Storage Temperature Range (TS): −55°C to +125°C
-
![CD4511 BCD To 7 Segment Latch Decoder Driver IC (DIP-16 Package)]()
CD4511 BCD To 7 Segment Latch Decoder Driver IC (DIP-16 Package)
Rs. 29.00Specification:-
- Max. input current of 1 µA at 18 V
- 5-V, 10-V, and 15-V parametric ratings
- High-output-sourcing capability up to 25 mA
- 7-segment outputs blanked for BCD input codes > 1001
-
![CD4017 Decade Counter IC (DIP-16 Package)]()
CD4017 Decade Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Wide supply voltage range: 3.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- Input Voltage: −0.5 VDC to VDD +0.5 VDC
- Storage Temperature: −65°C to +150°C
- DC Supply Voltage: −0.5 VDC to +18 VDC
- Power Dissipation: Dual-In-Line: 700 mW
- Lead Temperature: 260°C
-
![CD4099 8-bit Addressable Latch IC (DIP-16 Package)]()
CD4099 8-bit Addressable Latch IC (DIP-16 Package)
Rs. 29.00Specification:-
- Voltage: 3V to 18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 uA at 18 V
- Temperature range; 100 nA at 18 V
-
![CD4093 Quad 2-Input NAND Schmitt Trigger IC (DIP-14 Package)]()
CD4093 Quad 2-Input NAND Schmitt Trigger IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum Input Current of 1µA at 18V
- Temperature Range; 100nA at 18V and +25°C
- Operating temperature range: -55°C to 125°C
- 100% tested for quiescent current at 20 V
-

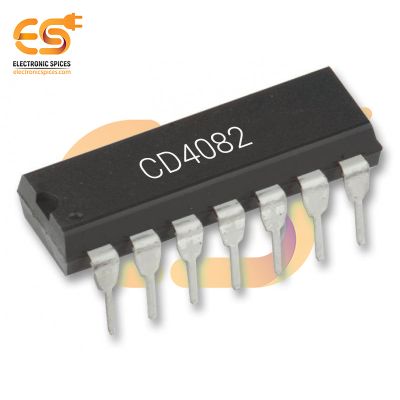

![CD4082 Quad 2 Input AND Gate IC (DIP-14 Package)]()
CD4082 Quad 2 Input AND Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation – tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
-
![CD4034 8-Stage Bidirectional Bus Register IC (DIP-24 Package)]()
CD4034 8-Stage Bidirectional Bus Register IC (DIP-24 Package)
Rs. 29.00Specification:-
- Supply Voltage: 3V to +18V
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Storage Temperature Range (TS): −55°C to +125°C
