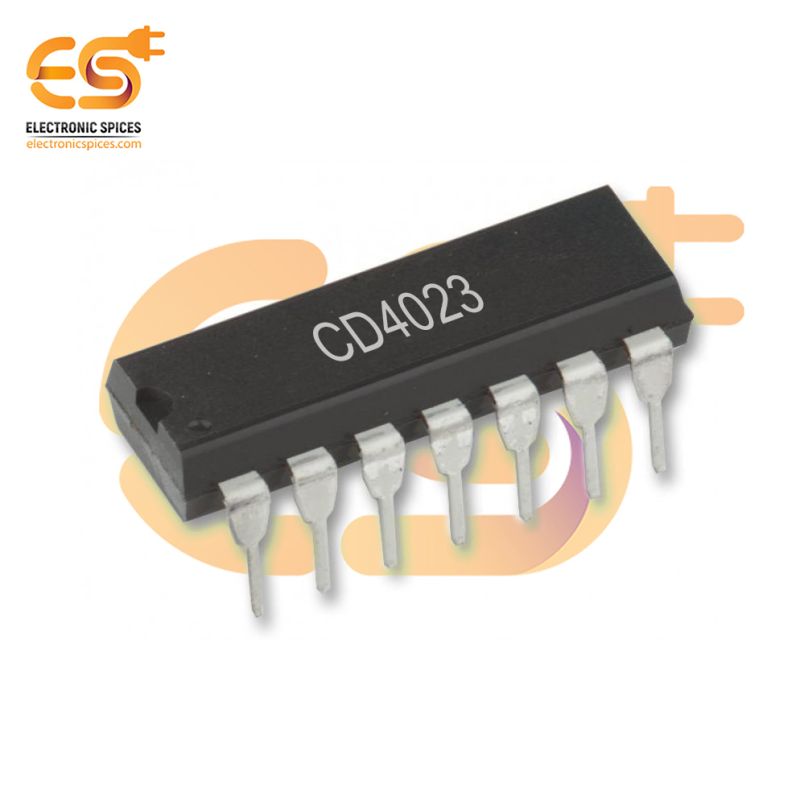

CD4023 Triple 3-Input NAND Gate IC (DIP-14 Package)
Specification:-
- Output type: Push-Pull
- Input type: Standard CMOS
- Data rate (Max): 8 Mbps
- Supply Voltage: 3V to +18V
- 5-V, 10-V, and 15-V parametric ratings
- Operating temperature range: -55°C to +125°C
- Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
SKU: HD8543A
CD4023 Triple 3-Input NAND Gate IC (DIP-14 Package)
The CD4023 is a Triple 3-Input NAND Gate IC housed in a compact DIP-14 package. This IC is part of the 4000 series of CMOS logic devices, known for their high noise immunity and low power consumption. Each CD4023 chip includes three independent NAND gates, each with three inputs. This configuration provides versatile logic gate functionality for a range of digital applications such as combinational logic circuits, signal processing, and data management systems. The CD4023 operates over a wide voltage range of 3V to 15V, making it compatible with both TTL and CMOS logic families. This broad range allows for flexibility in various circuit designs, from simple educational projects to more complex digital systems. The IC exhibits typical CMOS characteristics, such as low static power consumption and high input impedance, which contribute to efficient energy usage in larger circuits. Each of the three gates outputs a logic low only when all three of its inputs are at a logic high, otherwise outputting a logic high. This triple 3-input NAND gate arrangement enables designers to implement custom logic functions, enhancing circuit design capability with minimal external components.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
