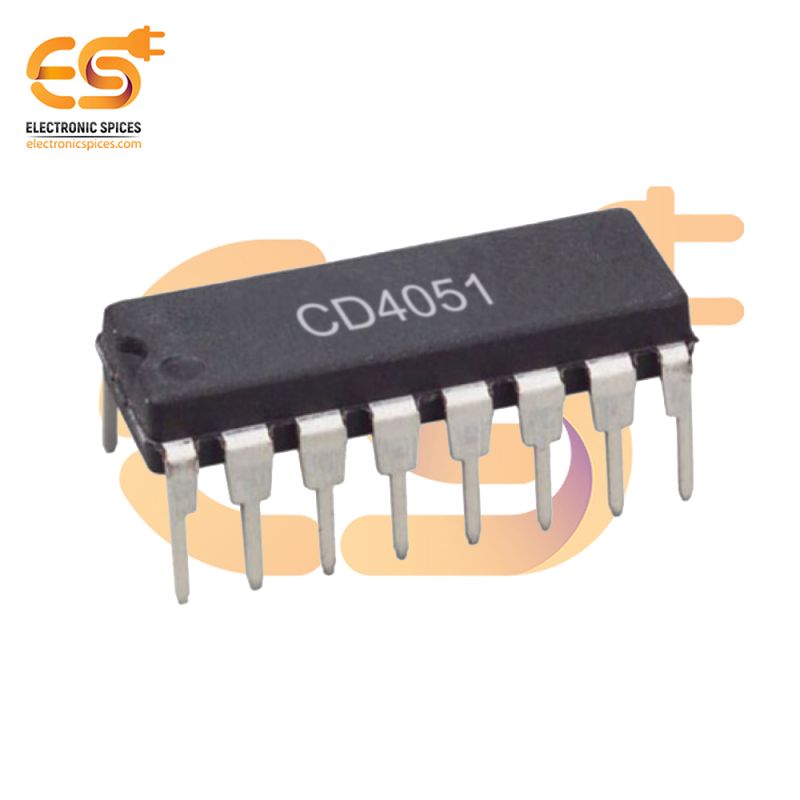

CD4051 Single 8-channel Multiplexer/Demultiplexer IC (DIP-16 Package)
Specification:-
- Bandwidth: 20 MHz
- Supply curren: 0.04 uA
- 100% Tested for Quiescent Current at 20 V
- 5 V, 10 V, and 15 V Parametric Ratings
- Maximum Input Current of 1 µA at 18
- Input/output continuous current (Max): 10 mA
- Temperature range : -55°C to 125°C
SKU: GZ8543A
CD4051 Single 8-channel Multiplexer/Demultiplexer IC (DIP-16 Package)
The CD4051 is a single 8-channel multiplexer/demultiplexer IC in a DIP-16 package, designed for routing one of eight input/output channels to a common output/input line. This versatile IC is suitable for both analog and digital signal switching, enabling efficient signal selection and distribution in a variety of applications. With bidirectional signal flow, the CD4051 can operate as a multiplexer or a demultiplexer, making it adaptable for use in data routing, signal processing, and communication systems. Control of the channel selection is managed through three binary address lines, which allow one of the eight channels to be selected at a time. The IC supports a wide operating voltage range of 3V to 15V, ensuring compatibility with different logic levels and power supply configurations. The CMOS construction of the CD4051 provides low power consumption and high noise immunity, making it a reliable choice for noise-sensitive applications.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Binary address decoding on chip
- Break-Before-Make Switching Eliminates Channel Overlap
