Specification:-
- Number of pins: 16
- Counter Type: Presettable
- Propagation Delay: 37ns
- Mounting Type: Through Hole
- Wide operating voltage range: 2 to 6V
- Operating Temperature (°C): − 55°C to + 125°C
SKU: XJ8501A

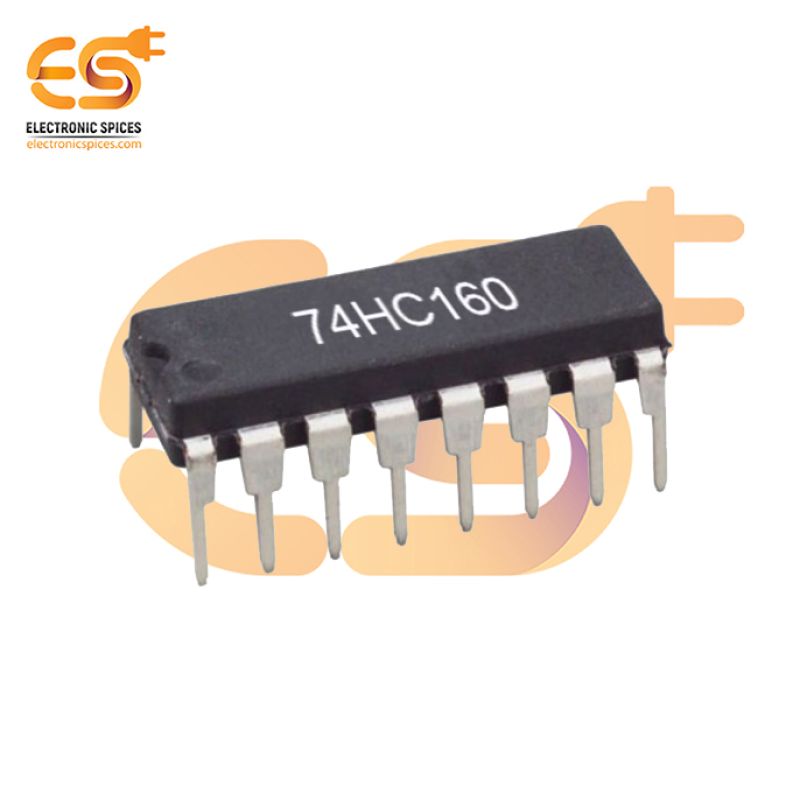

74HC160 Presettable Synchronous BCD Decade Counter IC DIP-16 Package
The 74HC160 is a Presettable Synchronous BCD Decade Counter IC designed for precision counting tasks in digital systems. Housed in a DIP-16 package, it counts in binary-coded decimal (BCD) format, meaning it cycles from 0 to 9, with each count represented in a 4-bit binary format. This IC is a synchronous counter, so all outputs change state simultaneously with each clock pulse, ensuring accuracy and reducing timing errors in applications that require precise, predictable counting. The 74HC160 has several control inputs that make it adaptable to various counting requirements. The Load input enables the counter to start counting from a specific preset number, which is beneficial in applications that need the count to begin from a non-zero value. When the Clear input is activated, the counter resets to zero, allowing a quick reset for the start of new counting sequences. This synchronous reset feature also ensures that the counter resets on the next clock cycle, maintaining timing accuracy.
Features:-
- DIP-16 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- BCD Decade Counter
