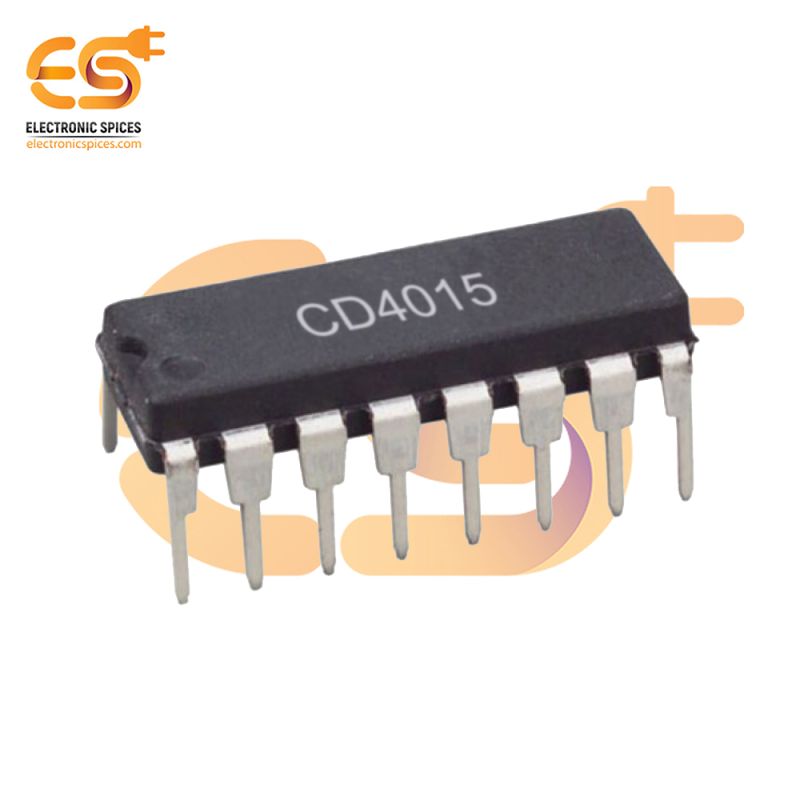

CD4015 Dual 4-Stage Shift Register IC (DIP-16 Package)
Specification:-
- Wide supply voltage range: 3V to 18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Operating Temperature Range: -55°C to + 125°C
SKU: VK8543A
CD4015 Dual 4-Stage Shift Register IC (DIP-16 Package)
The CD4015 is a Dual 4-Stage Shift Register IC in a DIP-16 package, designed for use in digital applications requiring serial data storage, shifting, and retrieval. It contains two independent 4-stage shift registers, which can be used for data storage, data transfer, or as part of a broader shift register chain. Shift registers are fundamental components in systems that process serial data, such as data communication, pulse-width modulation (PWM), and timing circuits. Each 4-stage shift register in the CD4015 can shift data either left or right depending on the configuration. The IC allows for both serial data input and output, making it ideal for applications where data needs to be moved or manipulated one bit at a time. The shift register is controlled by a clock input, and it provides a serial data output at the end of the register chain. The IC also has a parallel output for each stage, providing the flexibility to read or write multiple bits of data at once. The CD4015 operates over a voltage range of 3V to 15V, ensuring compatibility with both CMOS and TTL logic families. This low-power, high-noise immunity IC is built using CMOS technology, ensuring stable operation with minimal power consumption.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Standardized, symmetrical output characteristics
- 8 master-slave flip-flops plus input and output buffering
