CD4012 Dual 4-Input NAND Gate IC (DIP-14 Package)

CD4012 Dual 4-Input NAND Gate IC (DIP-14 Package)

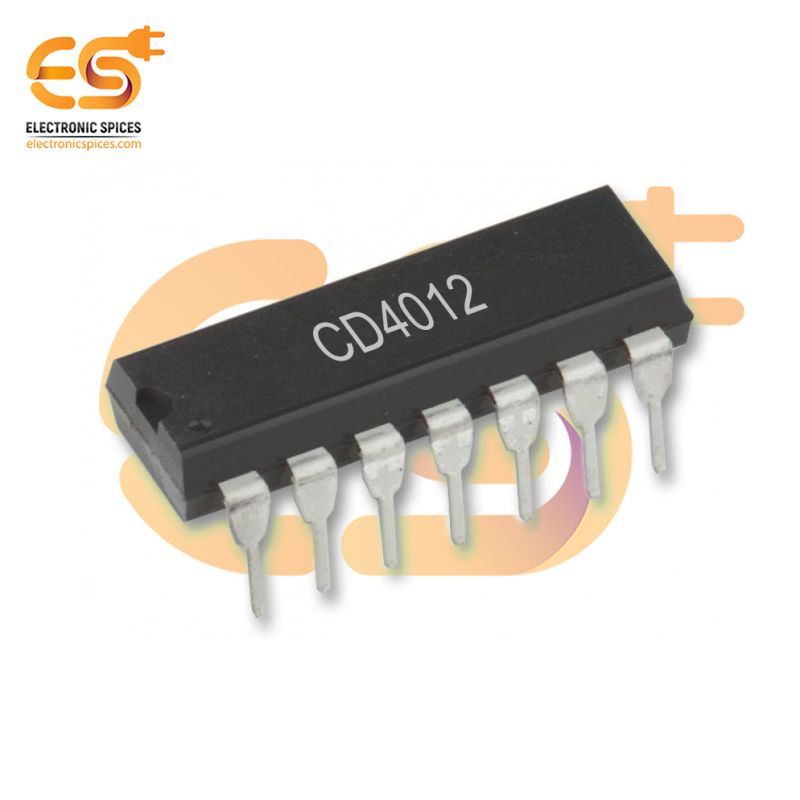

The CD4012 is a Dual 4-Input NAND Gate IC housed in a DIP-14 package, part of the 4000 series of CMOS logic devices. This IC contains two independent NAND gates, each with four inputs, allowing it to perform logic operations on multiple signals simultaneously. NAND gates are fundamental building blocks in digital logic, producing a logic low output only when all of their inputs are at a logic high level, otherwise outputting a logic high. The CD4012 is commonly used in applications that require the combination of multiple input signals, such as in combinational logic circuits, signal processing, and control systems. The IC is highly versatile, capable of implementing various complex logic functions by combining multiple gates in creative ways. Its four-input configuration provides increased functionality compared to standard two-input NAND gates, reducing the need for additional gates in circuit designs and simplifying layout. Operating over a supply voltage range of 3V to 15V, the CD4012 is compatible with both CMOS and TTL logic families. Built using CMOS technology, it offers low power consumption, high noise immunity, and reliable operation across typical conditions.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Static Flip-Flop Operation
• Asynchronous Set-Reset Capability
