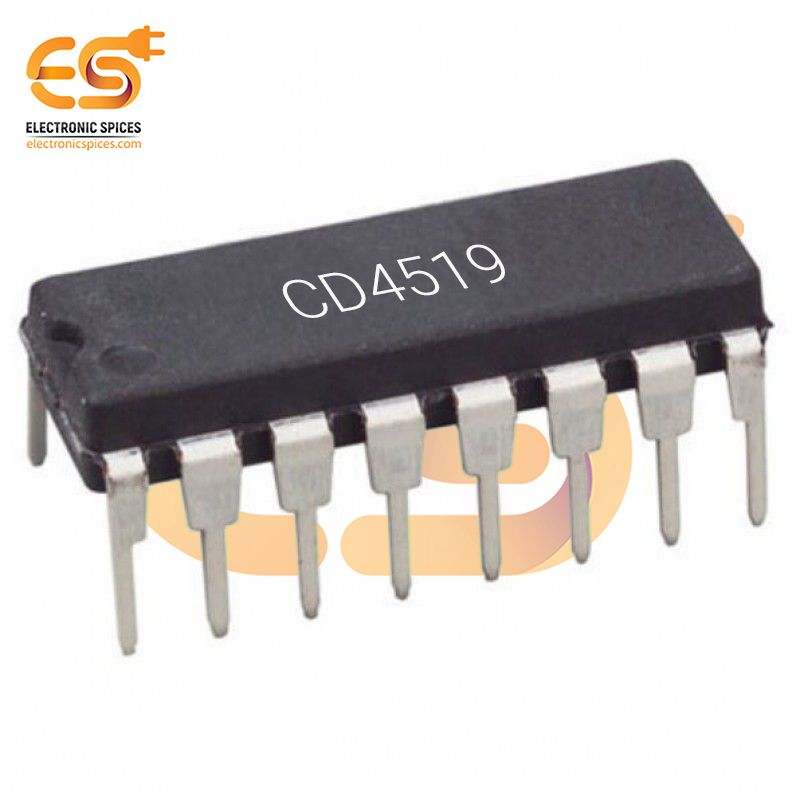

CD4519 Quad AND/OR Select Gate IC (DIP-16 Package)

Specification:-

  • Supply Voltage Range: 3V to 18V
  • DC Supply Voltage Range, (VDD): -0.5V to +20V
  • Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
  • DC Input Current, Any One Input: ±10mA
  • Single Supply Voltage -Positive OR Negative
Available in Pack Of:

SKU: AI8543A

MRP Rs. 83.19
Rs. 59.00 (Incl. Tax)
Rs. 50 (+18% GST extra)
Rs. 50 / pack of 1 = Rs. 50.00 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
Quantity
Add to Cart

CD4519 Quad AND/OR Select Gate IC (DIP-16 Package)

The CD4519 is a Quad AND/OR select gate IC housed in a DIP-16 package, designed to facilitate logic selection in digital circuits. This IC integrates four independent logic gates, each capable of performing either an AND or OR operation based on the select input. This versatile configuration makes the CD4519 suitable for applications that require logic signal routing, multiplexing, or flexible logical operations. Each of the four gates has two data inputs (A and B) and a select input (S). The output reflects an AND operation when the select input is low and an OR operation when the select input is high. This dual-function capability simplifies circuit design by reducing the need for separate AND and OR gates, optimizing space and power usage. The CD4519 operates over a wide voltage range from 3V to 15V, making it compatible with various logic families and suitable for a broad range of digital systems. Its CMOS construction ensures low power consumption and high noise immunity, contributing to stable operation in noisy environments and power-sensitive applications.

Features:-

  • Wide Supply Voltage Range
  • Low Power Consumption
  • Easy Integration
  • Very Low Quiescent Current
