Specification:-
- Maximum input current of 1 µA at 18 V
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
SKU: WT8543A

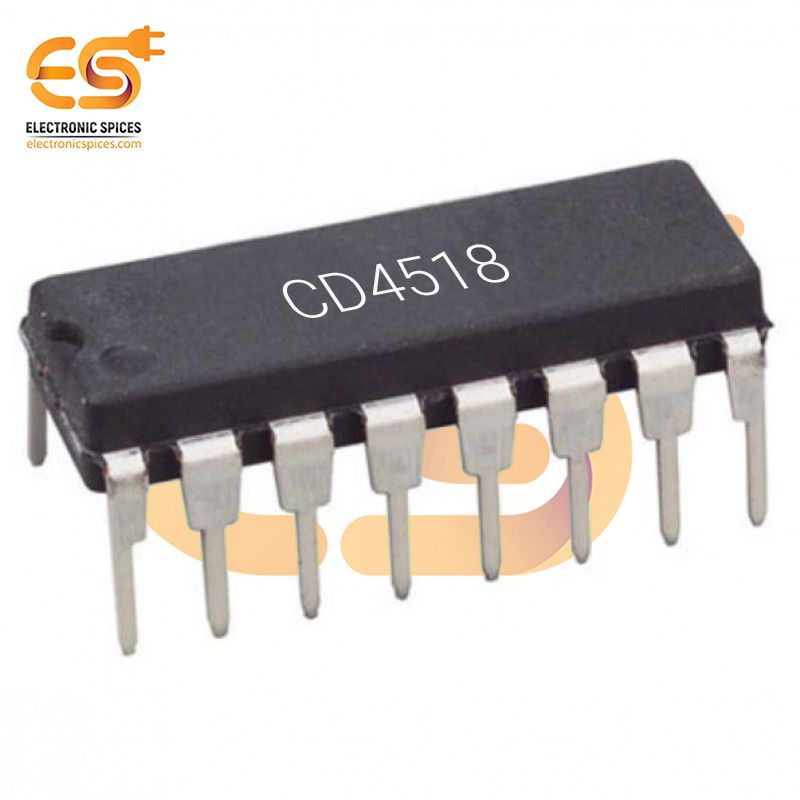

CD4518 Dual BCD Up Counter IC (DIP-16 Package)
The CD4518 is a Dual BCD (Binary-Coded Decimal) Up Counter IC housed in a DIP-16 package, designed for counting applications in digital systems. It contains two independent 4-bit BCD counters, making it suitable for applications such as digital clocks, frequency counters, event counters, and other sequential counting tasks that require decimal outputs. Each 4-bit counter within the CD4518 can count from 0 to 9 (BCD format) and resets to zero upon reaching its maximum count. The counters operate synchronously with the clock input, ensuring reliable and precise counting. Separate clock and reset inputs are provided for each counter, allowing independent operation or cascading for higher counts. The IC can be configured to operate in a single- or dual-counter mode, enhancing flexibility in design. The CD4518 operates over a wide voltage range from 3V to 15V, ensuring compatibility with various digital logic families and systems. The CMOS technology used in its construction guarantees low power consumption and high noise immunity, making it ideal for use in battery-powered or low-power applications.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Very Low Quiescent Current
