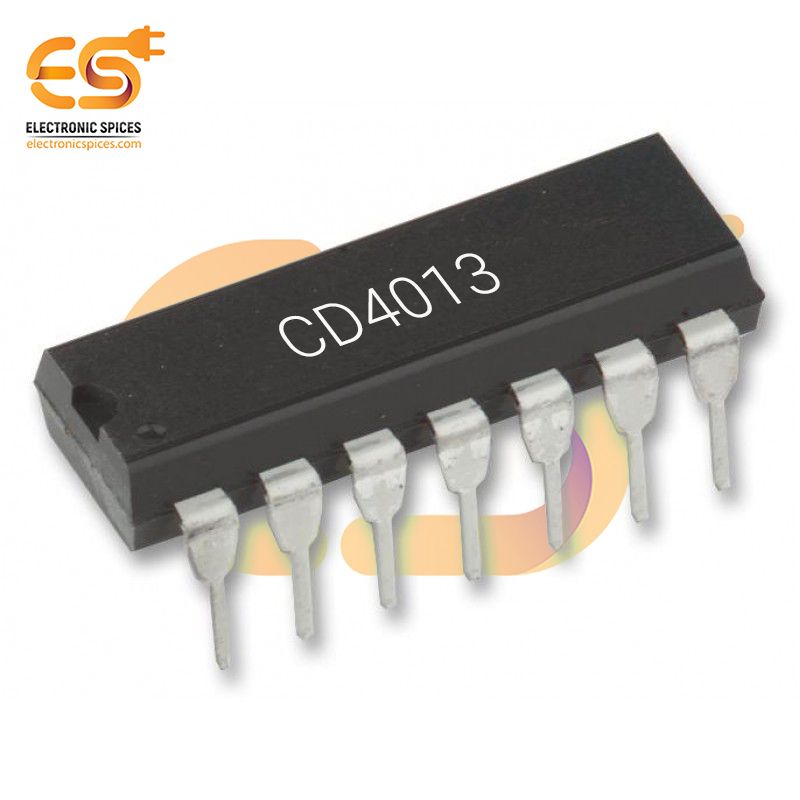

CD4013 Dual D Type Flip-Flop IC (DIP-14 Package)

CD4013 Dual D Type Flip-Flop IC (DIP-14 Package)

The CD4013 is a Dual D-Type Flip-Flop IC housed in a DIP-14 package, designed for use in digital systems where reliable data storage and synchronization are required. It contains two independent D-type flip-flops, each with a data input (D), clock input (CLK), and output (Q). These flip-flops are edge-triggered devices, meaning they change state on the rising or falling edge of the clock signal, providing stable and synchronized data storage for sequential logic circuits. The CD4013 is used for a wide range of applications including data storage, timing, state machines, and frequency dividers. In a typical configuration, data is presented at the D input, and when a clock pulse is received at the CLK input, the flip-flop stores the data and outputs it at the Q output. The CD4013 also features an asynchronous reset input, which allows the flip-flop to be reset to a known state, providing additional control in digital circuits. Operating over a supply voltage range of 3V to 15V, the CD4013 is compatible with both CMOS and TTL logic families, making it versatile for various digital designs. Built using CMOS technology, it offers low power consumption, high noise immunity, and reliable performance.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Static Flip-Flop Operation
• Asynchronous Set-Reset Capability
