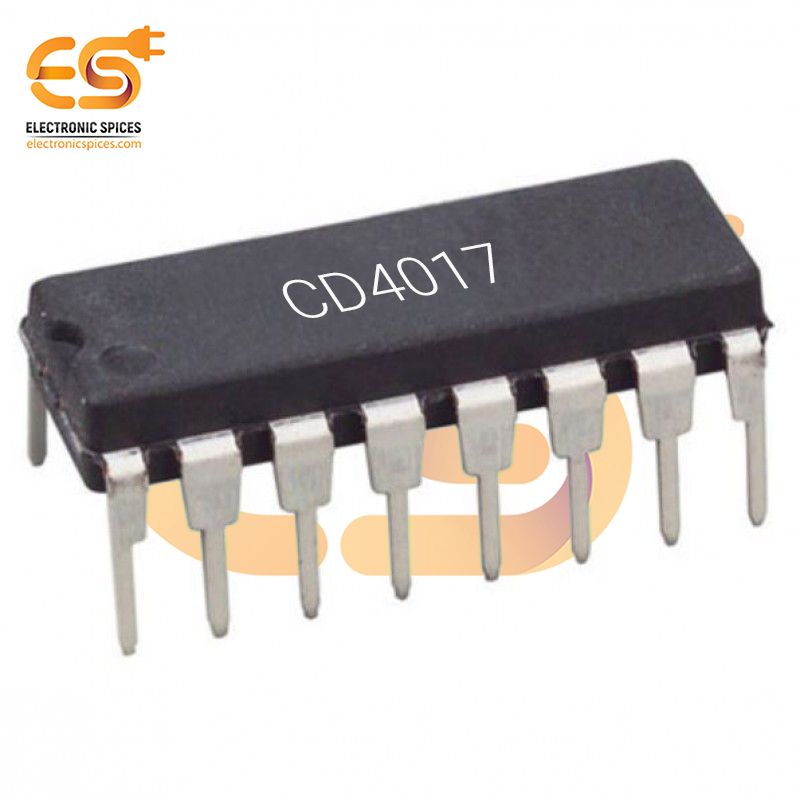

CD4017 Decade Counter IC (DIP-16 Package)

CD4017 Decade Counter IC (DIP-16 Package)

The CD4017 is a Decade Counter IC housed in a DIP-16 package, designed for counting pulses and generating sequential outputs in a variety of digital applications. This IC is a 10-stage Johnson decade counter, capable of counting from 0 to 9 (in decimal) and providing a unique output for each count. The CD4017 is ideal for applications that require precise counting and sequencing, such as driving 7-segment displays, event counting, or generating timing signals in digital circuits. The IC features ten output pins, each corresponding to a specific count, with one output going HIGH for each clock pulse that the counter receives. The counter increments its count with each pulse, and upon reaching the highest count (9), it resets and begins counting again from 0. The CD4017 also includes a carry-out pin that generates a pulse when the counter overflows from 9 to 0, allowing for cascading multiple CD4017 ICs for creating larger counting systems. The CD4017 operates with a supply voltage range of 3V to 15V, making it compatible with both CMOS and TTL logic levels. Built using CMOS technology, the IC is known for its low power consumption, high noise immunity, and stable operation in various environments.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Fully static operation
