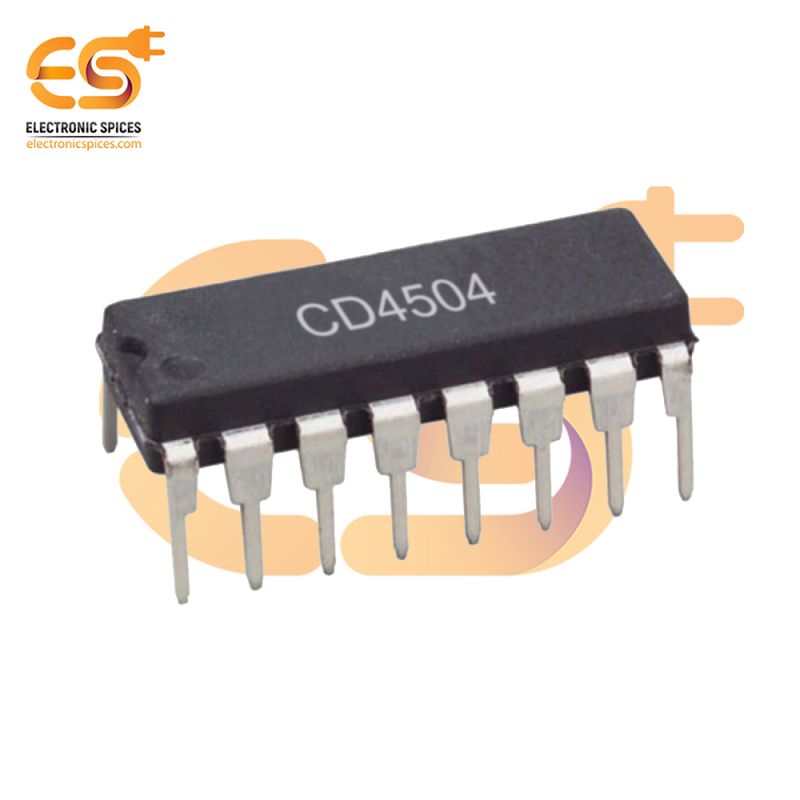

CD4504 Hex Voltage Level Shifter IC (DIP-16 Package)

CD4504 Hex Voltage Level Shifter IC (DIP-16 Package)

The CD4504 is a Hex Voltage Level Shifter IC housed in a DIP-16 package, designed to interface logic circuits operating at different voltage levels. It features six independent level shifters that allow for seamless voltage translation between two logic systems, ensuring compatibility between components that operate at different supply voltages, such as interfacing 5V logic with 3.3V systems or other mixed-voltage environments. Each of the six channels in the CD4504 is capable of shifting logic levels between two different voltage systems. The IC is typically used to interface high-speed CMOS circuits with TTL or other logic families, ensuring reliable data transmission between components that use different voltage levels. The device operates with a wide supply voltage range, from 3V to 18V, allowing it to function in various digital circuits. The CD4504 uses CMOS technology, providing low power consumption and high noise immunity, which enhances its reliability in noisy and power-sensitive applications. It is designed to ensure minimal signal degradation and maintains proper logic state levels when shifting voltage, making it ideal for communication between systems with differing logic levels or voltage requirements.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Standardized symmetrical output characteristics
