CD4022 Divide by 8 Counter/Divider IC (DIP-16 Package)

CD4022  Divide by 8 Counter/Divider IC (DIP-16 Package)

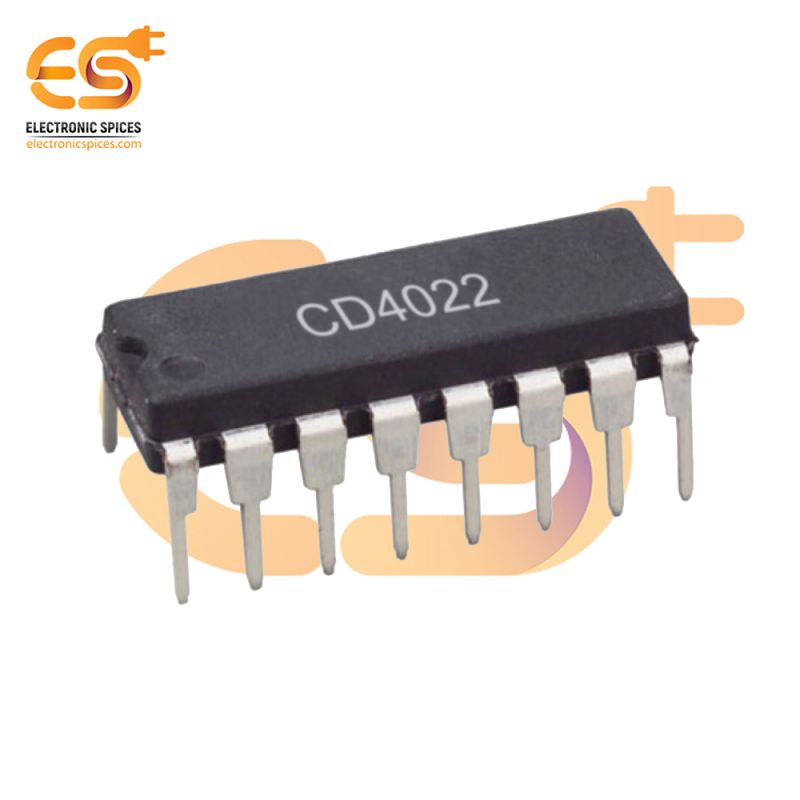

The CD4022 is a Divide-by-8 Counter/Divider IC available in a DIP-16 package. This IC is designed to divide the frequency of an input clock signal by a factor of 8, making it useful in applications that require frequency division, timing circuits, and digital counters. It is often employed in projects such as digital clocks, pulse rate dividers, and frequency synthesizers, where generating specific time delays or reducing high-frequency signals is necessary. The CD4022 features a 3-stage binary counter that counts up to 7 (in binary: 000 to 111), and after reaching the maximum count, it resets and starts the count again, dividing the input clock by 8. The IC provides a carry-out output that generates a pulse once the count completes, which can be used to trigger other circuits or devices. Operating over a voltage range of 3V to 15V, the CD4022 is compatible with a wide range of digital logic systems and is built using CMOS technology, ensuring low power consumption and high noise immunity. The IC also includes an asynchronous reset input, allowing the counter to be reset to zero immediately when needed.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Low Power CMOS
