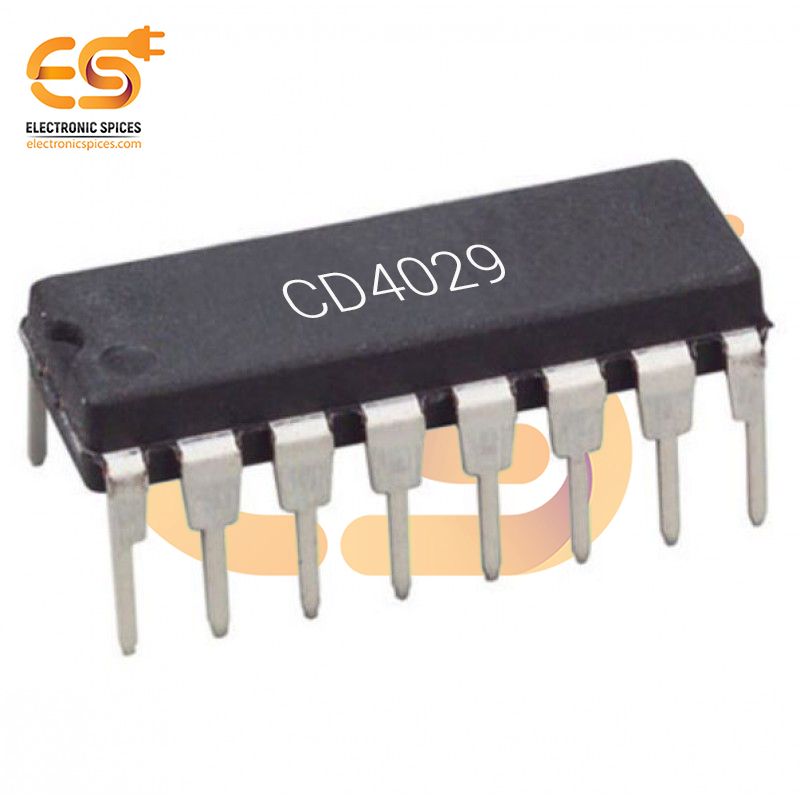

CD4029 Binary Decade Up-Down Counter IC (DIP-16 Package)

CD4029 Binary Decade Up-Down Counter IC (DIP-16 Package)

The CD4029 is a versatile Binary/Decade Up-Down Counter IC available in a DIP-16 package, designed for use in digital counting and arithmetic operations. This IC can operate in both binary and decade (BCD) counting modes, providing flexibility for various counting and sequencing applications. It features an up-down counting capability, enabling it to increment or decrement the count based on a control input, making it suitable for bidirectional counting tasks. The CD4029 can be preset to any initial value via parallel data inputs, allowing it to start counting from a user-defined number. This feature is particularly useful for applications that require specific counting sequences or reset points. The counter operates with a clock signal, advancing the count on each clock pulse according to the up/down control input. With a wide operating voltage range of 3V to 15V, the CD4029 is compatible with numerous digital systems, from low-power battery-operated devices to standard CMOS logic circuits. The IC provides reliable performance with low power consumption and high noise immunity, attributes typical of CMOS technology.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Binary or Decade Up/Down Counting
• BCD Outputs in Decade Mode
