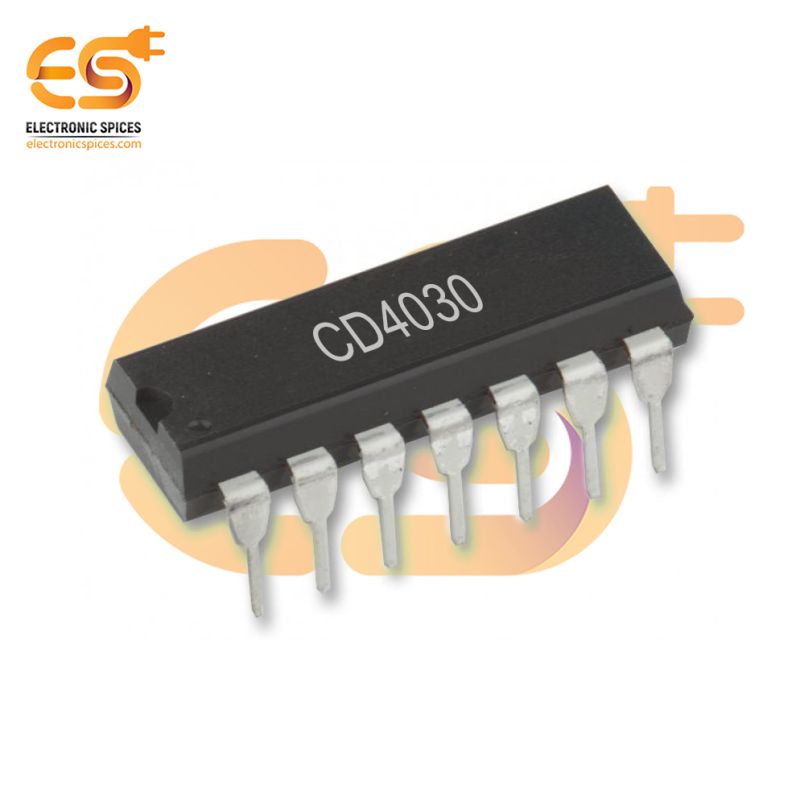

CD4030 Quad 2-Input Exclusive OR (EXOR) Gate IC (DIP-14 Package)
Specification:-
- Output type: Push-Pull
- Data rate (Max): 8Mbps
- Inputs per channel: 4
- Supply Voltage: 3V to +18V
- 5-V, 10-V, and 15-V parametric ratings
- Storage Temperature Range (TS): −55°C to +125°C
SKU: SH8543A
CD4030 Quad 2-Input Exclusive OR (EXOR) Gate IC (DIP-14 Package)
The CD4030 is a Quad 2-Input Exclusive OR (EXOR) Gate IC housed in a DIP-14 package, designed for various digital logic applications. Each IC contains four independent EXOR gates, each with two inputs and one output, providing efficient processing of logical operations that require comparison or conditional toggling. Exclusive OR gates output a logic HIGH (1) only when the number of HIGH inputs is odd, making them fundamental for digital circuits involving parity checking, bit manipulation, and digital adders. The CD4030 operates across a broad voltage range from 3V to 15V, making it compatible with a wide array of digital systems, from low-power microcontroller-based circuits to larger integrated systems. Constructed using CMOS technology, the CD4030 offers advantages such as low power consumption and high noise immunity, ensuring reliable performance in diverse electrical environments. The IC’s outputs are capable of driving moderate loads directly, and the device exhibits stable operation over standard temperature ranges.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
