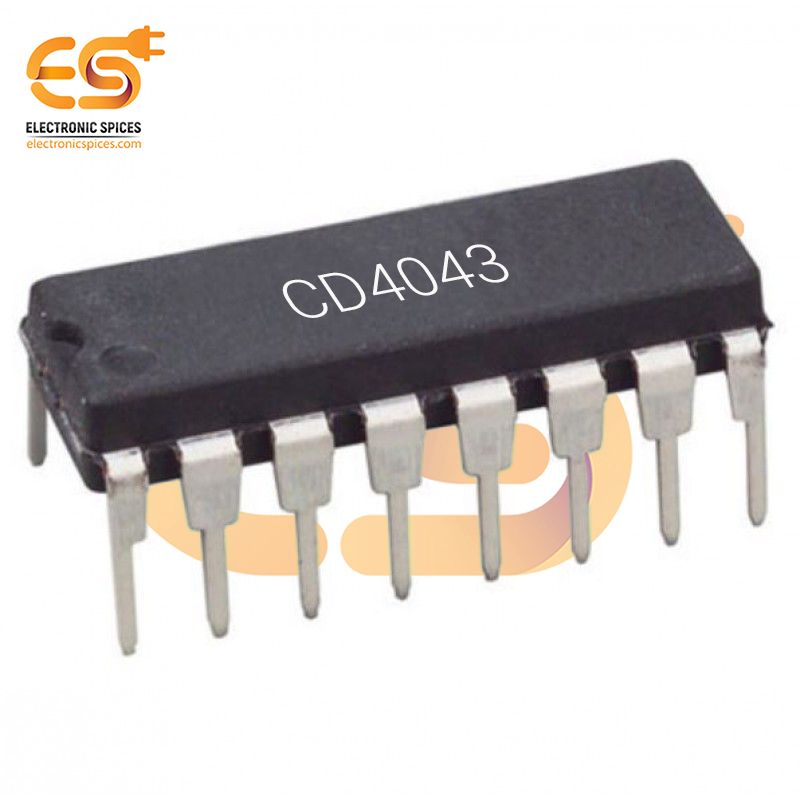

CD4043 Quad NOR R-S Latch Tri-state IC (DIP-16 Package)

CD4043 Quad NOR R-S Latch Tri-state IC (DIP-16 Package)

The CD4043 is a Quad NOR R-S (Reset-Set) latch IC housed in a DIP-16 package, designed to provide four individual R-S latches with tri-state outputs. This IC is used for data storage and control applications where it functions as a memory element, storing a bit of information until the input signals change it. Each latch within the CD4043 operates as a NOR gate configured for stable operation, maintaining a stable state without constant input, making it suitable for latching and timing circuits. One of the key features of the CD4043 is its tri-state output capability, which allows the outputs to be placed in a high-impedance state. This feature is valuable for bus-oriented systems, as it enables multiple ICs to share the same data lines without interference, facilitating efficient communication in complex circuits. The CD4043 operates over a wide voltage range from 3V to 15V, making it adaptable to various digital logic circuits. Its CMOS construction ensures low power consumption and high noise immunity, which is beneficial for battery-powered or noise-sensitive applications.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Four Independent Cross-Couple 3-state CMOS NOR Latches
