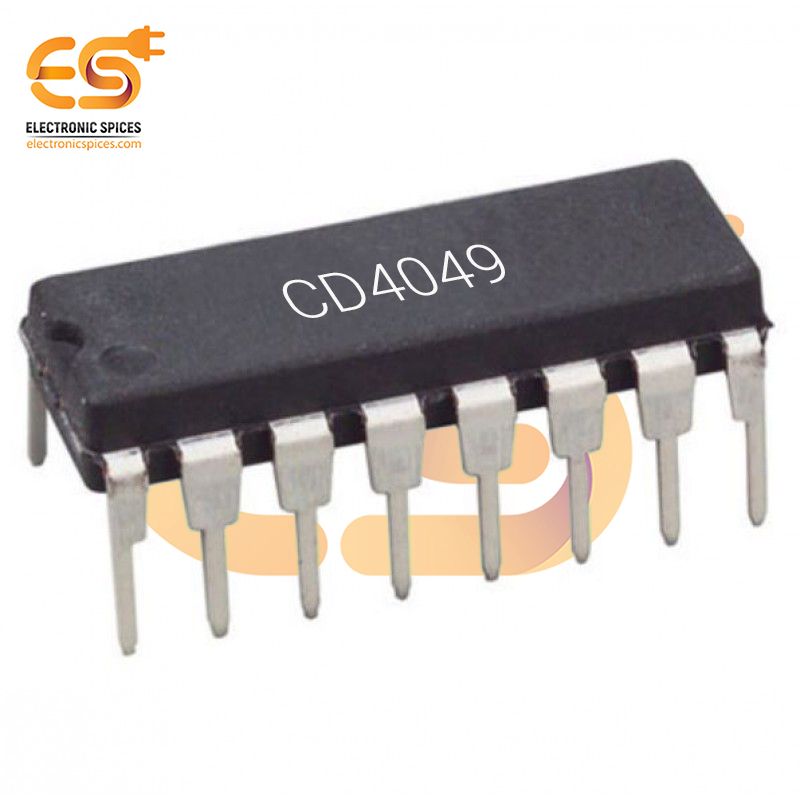

CD4049 Hex Inverting Buffer/Converter IC (DIP-16 Package)
Specification:-
- Voltage: 3V to 18V
- Output type: Push-Pull
- Data rate: 24Mbps
- Input Type: Standard CMOS
- 5-V, 10-V, and 15-V Parametric Ratings
- Maximum Input Current of 1 µA at 18 V
- Temperature Range; 100 nA at 18 V and 25°C
SKU: EC8543A
CD4049 Hex Inverting Buffer/Converter IC (DIP-16 Package)
The CD4049 is a hex inverting buffer/converter IC in a DIP-16 package, designed for use in a variety of digital applications where signal inversion and level conversion are needed. It consists of six independent inverting buffers that can transform input logic levels and provide high current drive capabilities. This IC is ideal for circuits that require signal inversion with the additional ability to buffer and amplify signals, making it suitable for driving higher loads or interfacing between different logic families. One of the key features of the CD4049 is its capability to operate over a broad power supply range, from 3V to 15V. This versatility ensures compatibility with various digital systems, whether low-voltage or standard logic circuits. Additionally, the CD4049's CMOS construction results in low power consumption and high noise immunity, enhancing the overall reliability of the circuit in electrically noisy environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Binary address decoding on chip
