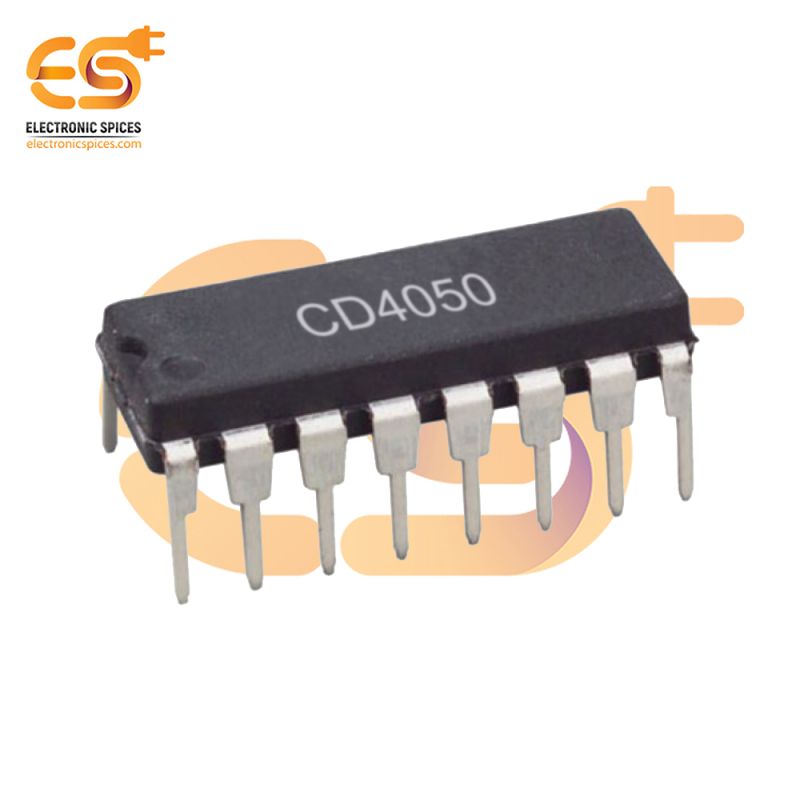

CD4050 Hex Non-Inverting Buffer IC (DIP-16 Package)
Specification:-
- Maximum Input Current of 1 µA at 18 V
- High Sink Current for Driving 2 TTL Loads
- Temperature Range; 100 nA at 18 V and 25°C
- 5-V, 10-V, and 15-V Parametric Ratings
- 100% Tested for Quiescent Current at 20 V
SKU: UU8543A
CD4050 Hex Non-Inverting Buffer IC (DIP-16 Package)
The CD4050 is a hex non-inverting buffer IC housed in a DIP-16 package, designed to provide buffering and voltage level shifting in digital circuits. This IC comprises six independent non-inverting buffers that can be used to increase the current drive capability of logic signals, isolate circuits, or shift signal levels between different logic families. The CD4050 is especially useful for interfacing CMOS circuits with TTL, as it can accept input voltages higher than the standard logic levels of many devices, protecting downstream components. Operating over a wide voltage range of 3V to 15V, the CD4050 is versatile and can be used with various power supplies. Its CMOS technology ensures low power consumption and high noise immunity, which is beneficial for maintaining reliable operation in noisy environments. The IC’s high input impedance and low output impedance make it an excellent choice for buffering weak signals to drive larger loads without significant voltage drop.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Binary address decoding on chip
