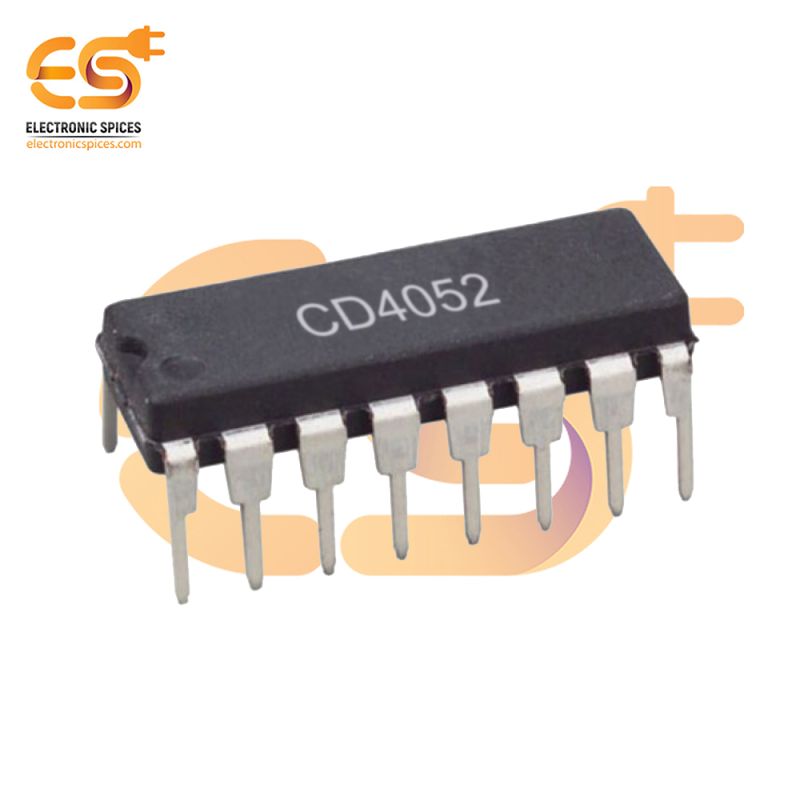

CD4052 Differential 4-Channel Multiplexer/Demultiplexer IC (DIP-16 Package)
Specification:-
- DC Supply Voltage (VDD) : −0.5VDC to +18VDC
- Input Voltage (VIN) : −0.5VDC to VDD + 0.5VDC
- Storage Temperature Range (TS) : −65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL) : 260°C
- Matched switch characteristics: ∆RON = 5Ω (typ.) for VDD − VEE = 15V
- High “OFF” resistance: channel leakage of ±10 pA (typ.) at VDD − VEE = 10V
SKU: SC8543A
CD4052 Differential 4-Channel Multiplexer/Demultiplexer IC (DIP-16 Package)
The CD4052 is a differential 4-channel multiplexer/demultiplexer IC in a DIP-16 package, designed to switch between four pairs of input/output channels. This IC is ideal for applications requiring multi-channel analog or digital signal routing, allowing efficient signal selection and distribution. Each of the four channels can be independently controlled to connect one of the paired inputs/outputs to a common output/input, supporting bidirectional signal flow for flexible circuit design. The CD4052 features low "on" resistance and high linearity, making it suitable for analog signal processing with minimal signal distortion. Control of the channel selection is managed through two binary control inputs, which can be used to select one of the four available channels. Additionally, the IC supports differential operation, enabling it to handle balanced signals, which is especially beneficial in minimizing noise in data transmission. Operating over a wide voltage range of 3V to 15V, the CD4052 is compatible with various logic families and power supply levels. The use of CMOS technology ensures low power consumption and high noise immunity, making the IC robust and reliable for diverse environments, including audio equipment, sensor arrays, and communication systems.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Binary address decoding on chip
.jpg)
