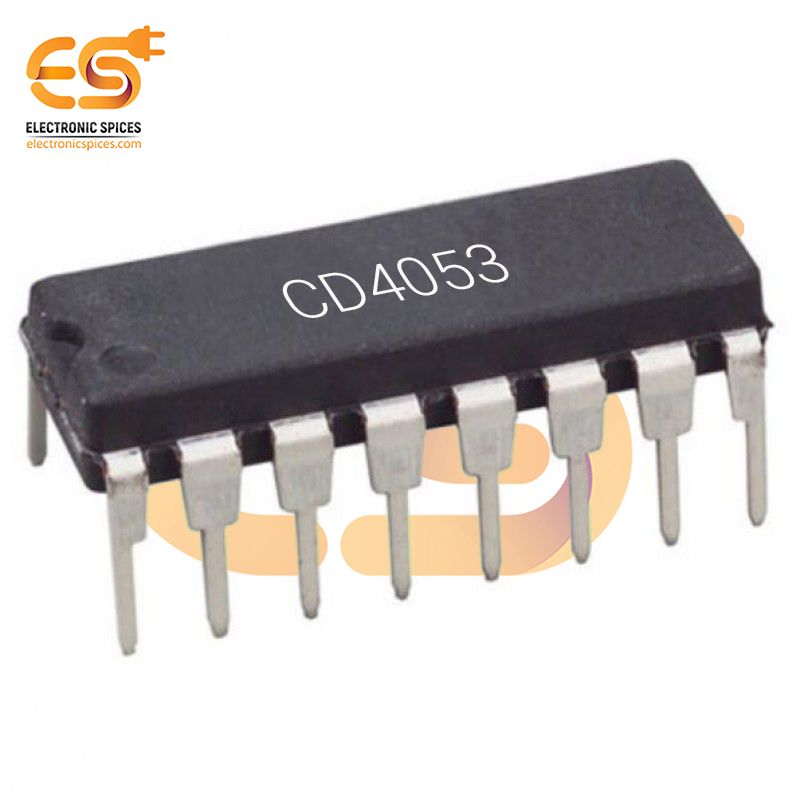

CD4053 Triple 2-Channel Multiplexer/Demultiplexer IC (DIP-16 Package)
Specification:-
- DC Supply Voltage (VDD) : −0.5VDC to +18VDC
- Input Voltage (VIN) : −0.5VDC to VDD + 0.5VDC
- Storage Temperature Range (TS) : −65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL) : 260°C
SKU: QR8543A
CD4053 Triple 2-Channel Multiplexer/Demultiplexer IC (DIP-16 Package)
The CD4053 is a triple 2-channel multiplexer/demultiplexer IC packaged in a DIP-16 format, designed for signal switching in both analog and digital applications. This IC contains three independent SPDT (single-pole, double-throw) switches, allowing two channels to be connected or disconnected based on control signals. Each channel can handle bidirectional signal flow, enabling flexible routing for data and signals in circuits. Each of the three multiplexers/demultiplexers within the CD4053 is controlled by its respective logic control inputs, which determine the connection path between the common output and one of the input channels. The IC operates over a wide voltage range of 3V to 15V, making it versatile for various power supply configurations and compatible with a broad range of logic levels. The CD4053’s CMOS construction ensures low power consumption and high noise immunity, providing reliable performance in noise-sensitive applications. This IC is well-suited for use in signal multiplexing, data routing, audio switching, and analog signal processing due to its low "on" resistance and high linearity.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Binary address decoding on chip
