Specification:-
- Inputs: 2
- LOGIC Circuit: XOR
- Voltage Rating: 3V to 15V
- Propagation Delay (tpd): 280ns
- Noise immunity: 0.45 VDD
SKU: WW8543A

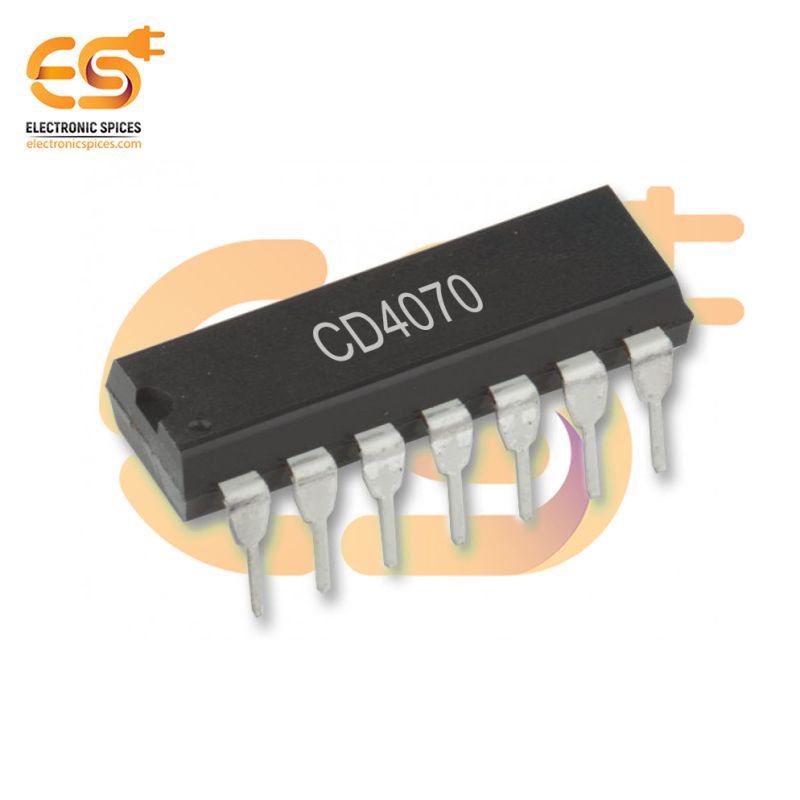

CD4070 Quad 2-Input Exclusive-OR (XOR) Gate IC (DIP-14 Package)
The CD4070 is a Quad 2-input Exclusive-OR (XOR) Gate IC housed in a DIP-14 package, designed for use in digital logic circuits where XOR logic functions are required. This IC contains four independent 2-input XOR gates, each capable of performing the XOR operation on two input signals. The output of each gate will be high (logic "1") if one, and only one, of its inputs is high. If both inputs are either high or low, the output will be low (logic "0"). The XOR gate is widely used in digital systems for a variety of applications, such as arithmetic operations, error detection and correction, and parity checking. It is also used in more complex circuits, such as adders and subtracters, where the behavior of the XOR gate is key to performing binary addition without carry. The CD4070 operates within a supply voltage range of 3V to 18V, making it compatible with a broad range of logic families and systems. Built using CMOS technology, the IC offers low power consumption, high noise immunity, and reliable performance in both low-power and noisy environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
