Specification:-
- Voltage at Any Pin: −0.5V to VDD +0.5V
- Power Dissipation (PD) Dual-In-Line: 700 mW
- VDD Range: −0.5 VDC to +18
- VDC Storage Temperature (TS): −65°C to +150°C
- Lead Temperature (TL): 260°C
- Maximum input leakage 1 µA at 15V
SKU: LT8543A

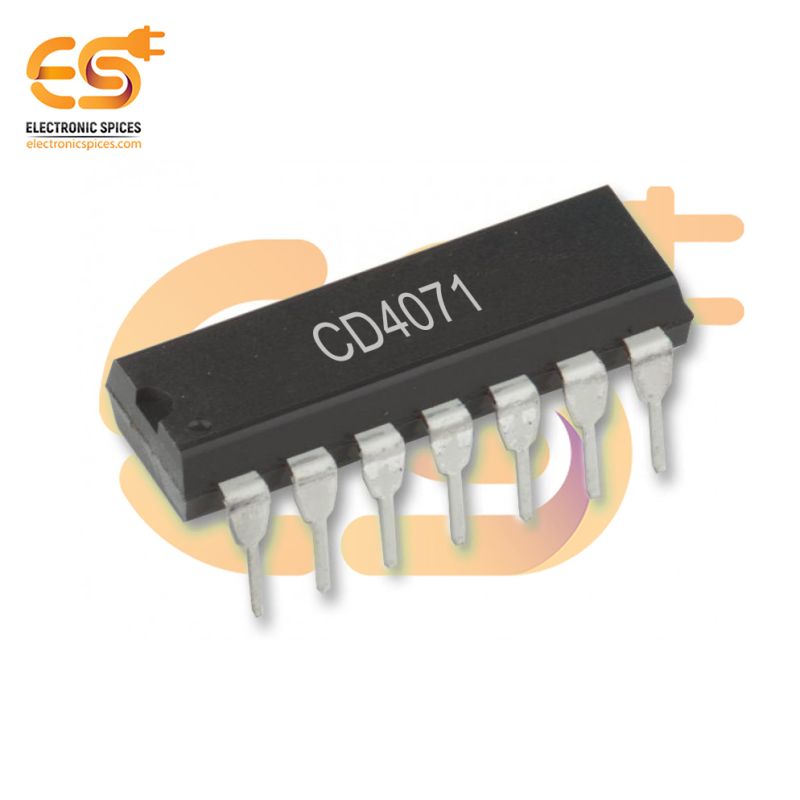

CD4071 Quad 2-input OR gate IC (DIP-14 Package)
The CD4071 is a Quad 2-input OR Gate IC housed in a DIP-14 package, designed for use in digital logic circuits where logical OR operations are needed. This IC contains four independent 2-input OR gates, each of which produces a high output (logic "1") when at least one of its inputs is high (logic "1"). The output will be low (logic "0") only when both inputs are low. The CD4071 is commonly used in applications where multiple conditions need to be evaluated and logically combined. It is widely used in combinational logic circuits, decision-making processes, data routing, and signal processing. By offering four independent OR gates in a single IC, the CD4071 allows designers to implement efficient logic functions without the need for additional components, reducing overall circuit complexity. The IC operates over a supply voltage range of 3V to 18V, making it compatible with various logic systems. It is built using CMOS technology, which ensures low power consumption, high noise immunity, and stable performance, even in noisy or power-sensitive environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Low power TTL compatibility
- Symmetrical output characteristics
