Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 µA at 18 V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation – tPHL, tPLH = 75 ns (typ.) at VDD = 10 V
SKU: JI8543A

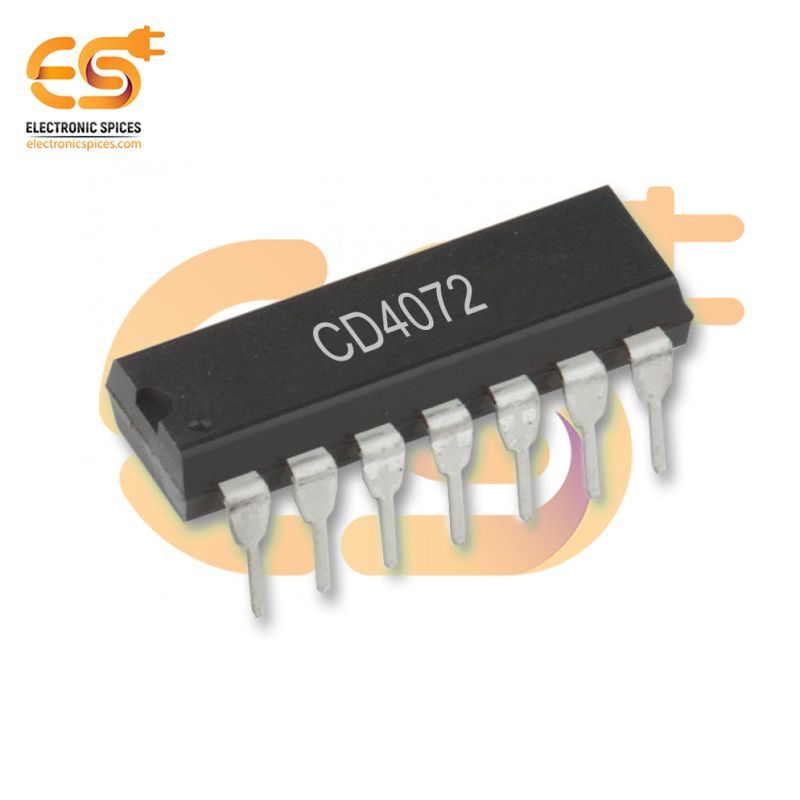

CD4072 Dual 4-Input OR Gate IC (DIP-14 Package)
The CD4072 is a Dual 4-input OR Gate IC housed in a DIP-14 package, designed to perform logical OR operations on four input signals. This IC contains two independent 4-input OR gates, each capable of outputting a high (logic "1") when at least one of its four inputs is high. The output will only be low (logic "0") when all of its inputs are low. The CD4072 is commonly used in digital logic circuits where multiple input conditions need to be evaluated for logical inclusion, such as in decision-making circuits, signal processing, or data routing. By combining four input signals in each gate, the IC simplifies the design of complex logic systems and reduces the need for additional components. Operating over a wide supply voltage range of 3V to 18V, the CD4072 is versatile and can be used in various digital systems. The IC is built with CMOS technology, which ensures low power consumption, high noise immunity, and reliable performance even in noisy environments or power-sensitive applications.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- No limit on input rise and fall times
- Standardized, symmetrical output characteristics
