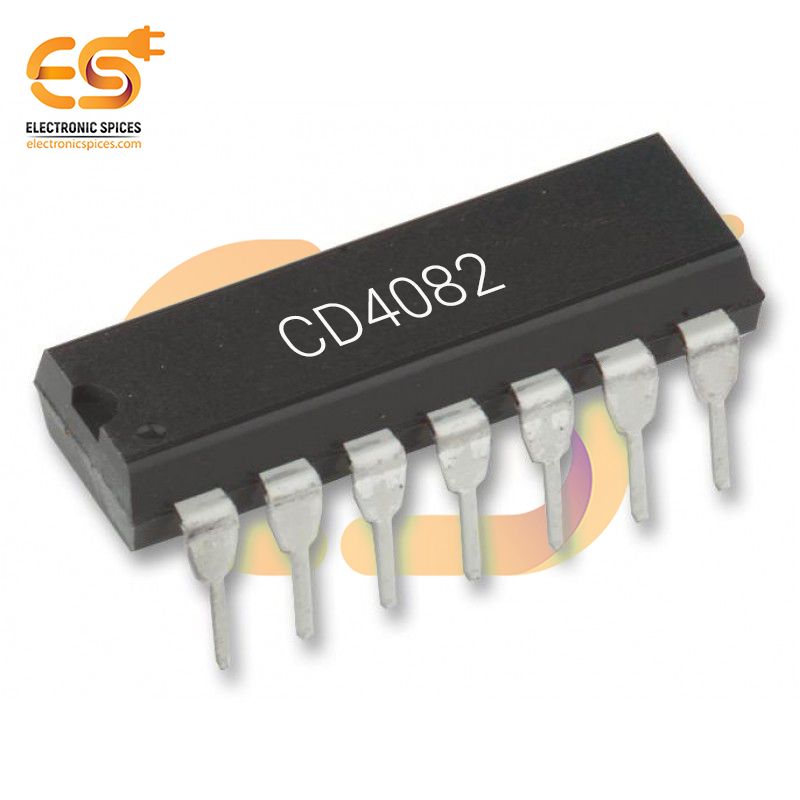

CD4082 Quad 2 Input AND Gate IC (DIP-14 Package)

CD4082 Quad 2 Input AND Gate IC (DIP-14 Package)

The CD4082 is a Quad 2-input AND Gate IC housed in a DIP-14 package, designed for use in digital logic systems where multiple logic conditions need to be evaluated simultaneously. This IC contains four independent 2-input AND gates, each capable of performing the logical AND operation on two input signals. The output of each gate will only be high (logic "1") when both of its inputs are high, otherwise, the output will be low (logic "0"). The CD4082 is ideal for applications that require the combination of two input signals under strict conditions, such as in control systems, signal processing, and logic circuits. It is commonly used in digital systems to create more complex logical conditions by combining simpler binary signals. For example, the IC can be used to implement functions like multiplexing, data routing, or decision-making processes that depend on multiple conditions being met. The IC operates over a wide supply voltage range, from 3V to 15V, making it compatible with various logic systems and ensuring versatility in different applications. It employs CMOS technology, which ensures low power consumption and high noise immunity, making the IC efficient and stable in a wide range of environments.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• No limit on input rise and fall times
• Standardized, symmetrical output characteristics
