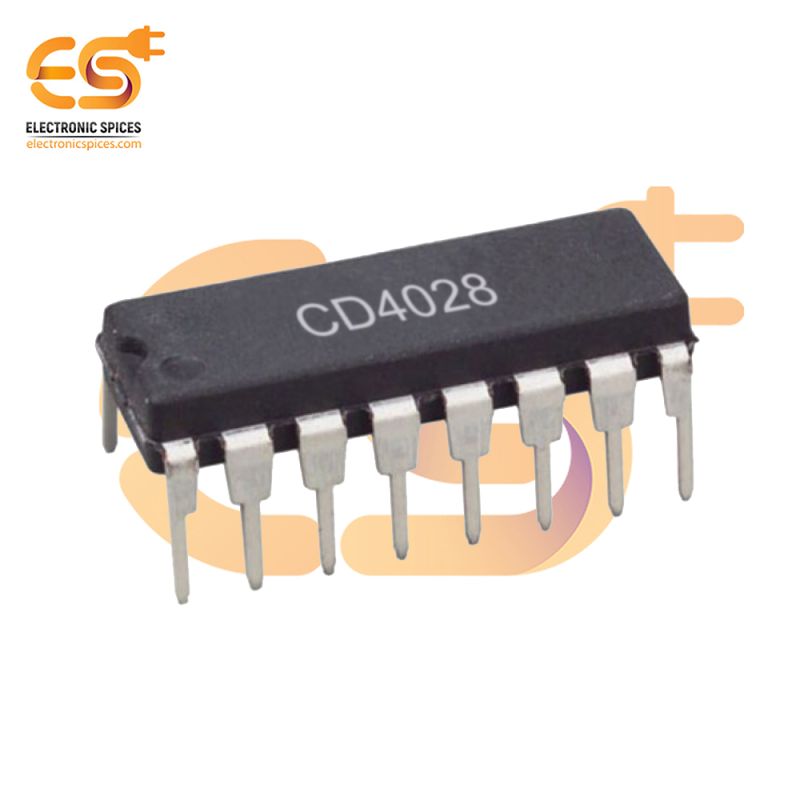

CD4028 BCD to Decimal Decoder IC (DIP-16 Package)
Specification:-
- Supply Voltage: 3V to 18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Operating Temperature Range: -55°C to +125°C
SKU: VH8543A
CD4028 BCD to Decimal Decoder IC (DIP-16 Package)
The CD4028 is a BCD (Binary-Coded Decimal) to Decimal Decoder IC housed in a DIP-16 package. This IC is designed to decode a 4-bit BCD input (ranging from 0000 to 1001) into one of ten unique output lines, with each line representing a decimal value from 0 to 9. When the BCD input matches a specific decimal value, the corresponding output line goes HIGH, while all other outputs remain LOW. The CD4028 features active HIGH outputs, making it suitable for driving loads that respond to a logic HIGH state. It is commonly used in applications that require the conversion of binary data to a decimal display format, such as driving numeric displays, digital meters, and counters. The IC can also be used in logic systems for decoding and data routing tasks. Operating within a voltage range of 3V to 15V, the CD4028 is compatible with a variety of digital circuits and is characterized by low power consumption due to its CMOS construction. This ensures high noise immunity and stable performance across standard temperature ranges.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- 100% tested for quiescent current at 20 V
- High decoded output drive capability
