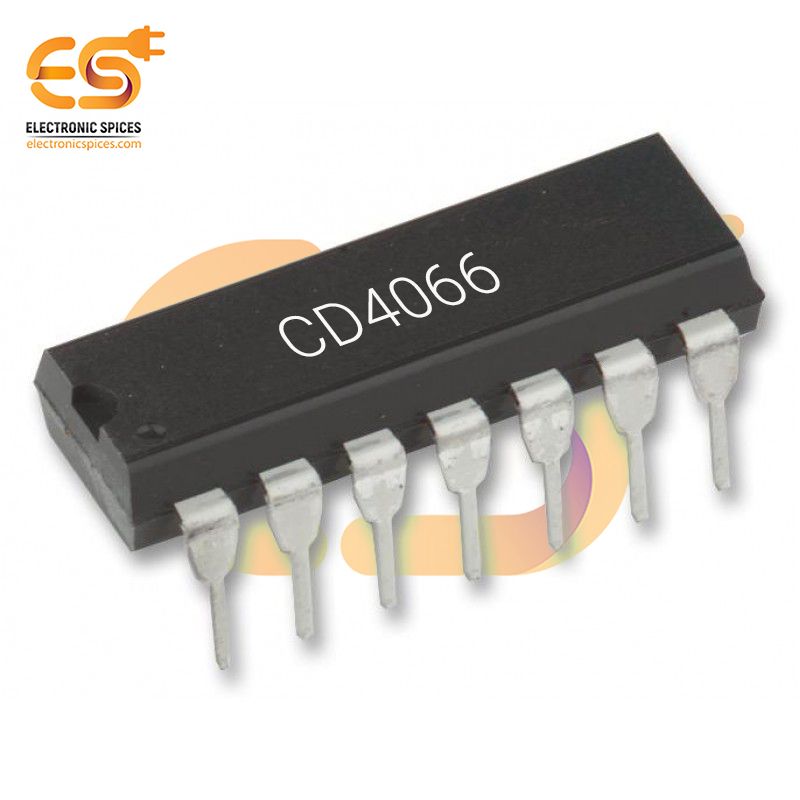

CD4066 Quad Bilateral Switch IC (DIP-14 Package)
Specification:-
- Number of channels: 4
- Bandwidth: 40MHz
- 5-V, 10-V, and15-V Parametric Ratings
- 15-V Digital or ±7.5-V Peak-to-Peak Switching
- 100% Tested for Quiescent Current at 20-V
- Operating temperature range: -55°C to 125 °C
- Low Crosstalk Between Switches: –50 dB Typical at fis = 8 MHz, RL = 1 kΩ
SKU: AV8543A
CD4066 Quad Bilateral Switch IC (DIP-14 Package)
The CD4066 is a Quad Bilateral Switch IC housed in a DIP-14 package, featuring four independently controlled analog or digital signal switches. Each switch can be used to connect or disconnect signals in a circuit, allowing bidirectional signal flow between its terminals. This IC is particularly suitable for applications requiring signal routing, such as multiplexing, demultiplexing, and simple switching functions. Each of the four switches within the CD4066 is controlled by a digital logic input, which, when activated (logic "1"), closes the switch and allows the signal to pass through. When the control input is deactivated (logic "0"), the switch opens, isolating the signal. The bilateral nature of the switches enables them to pass both analog and digital signals, making the CD4066 versatile in various circuit designs. The IC operates over a wide supply voltage range of 3V to 15V, making it compatible with different power sources and logic levels. The use of CMOS technology ensures low power consumption and high noise immunity, contributing to stable operation in both power-sensitive and noise-prone environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
