Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum Input Current of 1µA at 18V
- Temperature Range; 100nA at 18V and +25°C
- Operating temperature range: -55°C to 125°C
- 100% tested for quiescent current at 20 V
SKU: UA8543A

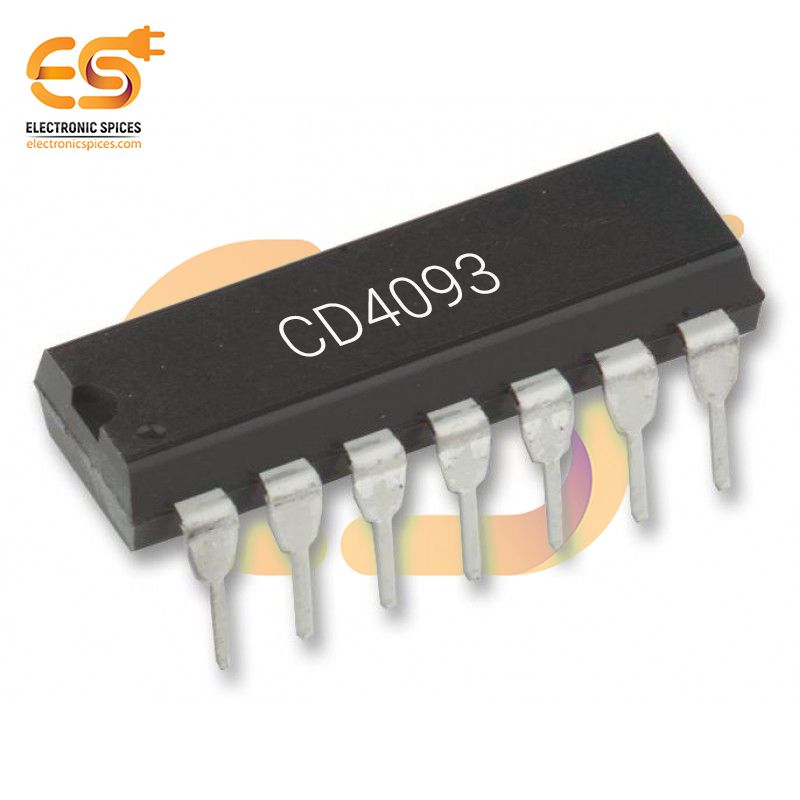

CD4093 Quad 2-Input NAND Schmitt Trigger IC (DIP-14 Package)
The CD4093 is a Quad 2-input NAND Schmitt Trigger IC housed in a DIP-14 package, designed to provide reliable logic level conversion and noise immunity in digital circuits. This IC features four independent 2-input NAND gates, each equipped with Schmitt trigger inputs, which offer enhanced noise immunity and hysteresis for more stable switching in noisy or unstable environments. The Schmitt trigger inputs ensure that the input voltage thresholds are well-defined, preventing erratic behavior caused by slow or noisy input signals. This makes the CD4093 particularly useful for applications involving signals with slow edges or high noise levels, such as interfacing with mechanical switches, sensors, or long cable runs. Each NAND gate in the CD4093 operates with standard logic, producing a low output when both inputs are high, and a high output for all other input combinations. The IC is designed to operate over a wide supply voltage range, from 3V to 15V, making it compatible with a variety of logic families and systems.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- No limit on input rise and fall times
- Standardized, symmetrical output characteristics
