CD40 SERIES DIP IC
Showing 1–12 of 64 results
.jpg)
.jpg)
-
![CD4093 Quad 2-Input NAND Schmitt Trigger IC (DIP-14 Package)]()
CD4093 Quad 2-Input NAND Schmitt Trigger IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum Input Current of 1µA at 18V
- Temperature Range; 100nA at 18V and +25°C
- Operating temperature range: -55°C to 125°C
- 100% tested for quiescent current at 20 V
-
![CD4050 Hex Non-Inverting Buffer IC (DIP-16 Package)]()
CD4050 Hex Non-Inverting Buffer IC (DIP-16 Package)
Rs. 29.00Specification:-
- Maximum Input Current of 1 µA at 18 V
- High Sink Current for Driving 2 TTL Loads
- Temperature Range; 100 nA at 18 V and 25°C
- 5-V, 10-V, and 15-V Parametric Ratings
- 100% Tested for Quiescent Current at 20 V
-
![CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)]()
CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)
Rs. 59.00Specification:-
- Wide supply voltage range 3V to 15V
- High noise immunity 0.45 VDD (typ.)
- Low power TTL compatibility
- Carry and borrow outputs for easy expansion to N-bit by cascading
-
![CD4011 Quad 2-Input NAND Gate IC (DIP-14 Package)]()
CD4011 Quad 2-Input NAND Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage: 3V to 18V
- Input type: Standard CMOS
- Output type: Push-Pull
- Data rate (Max): 8 (Mbps)
- Noise margin (over full package temperature range:
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Operating Temperature Range: -55°C to + 125°C
-
![CD4099 8-bit Addressable Latch IC (DIP-16 Package)]()
CD4099 8-bit Addressable Latch IC (DIP-16 Package)
Rs. 29.00Specification:-
- Voltage: 3V to 18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 uA at 18 V
- Temperature range; 100 nA at 18 V
-
![CD4043 Quad NOR R-S Latch Tri-state IC (DIP-16 Package)]()
CD4043 Quad NOR R-S Latch Tri-state IC (DIP-16 Package)
Rs. 29.00Specification:-
- Supply Voltage (VDD): −0.5V to +18V
- Input Voltage (VIN): −0.5V to VDD +0.5V
- Storage Temperature Range (TS): −65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL): 260°C
-

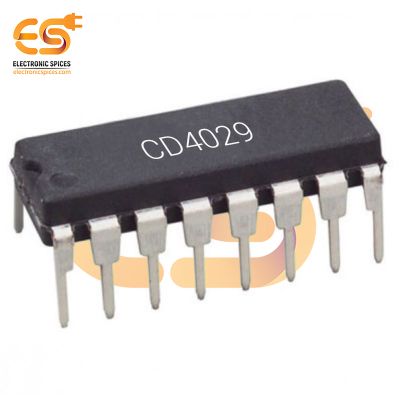

![CD4029 Binary Decade Up-Down Counter IC (DIP-16 Package)]()
CD4029 Binary Decade Up-Down Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- DC Supply Voltage Range, (VDD): -0.5V to +20V
- Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
- DC Input Current, Any One Input: ±10mA
- 5V, 10V and 15V Parametric Ratings
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range (TSTG): -65°C to +150°C
- Lead Temperature (During Soldering): +265°C
-
![CD4013 Dual D Type Flip-Flop IC (DIP-14 Package)]()
CD4013 Dual D Type Flip-Flop IC (DIP-14 Package)
Rs. 29.00Specification:-
- Output type: Push-Pull
- Input type: Standard CMOS
- Wide supply voltage range: 3V to 18V
- Noise Margin (Over Full Package Temperature Range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation: 16 MHz (Typical)
-
![CD4034 8-Stage Bidirectional Bus Register IC (DIP-24 Package)]()
CD4034 8-Stage Bidirectional Bus Register IC (DIP-24 Package)
Rs. 29.00Specification:-
- Supply Voltage: 3V to +18V
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Storage Temperature Range (TS): −55°C to +125°C
-
![CD4020 14-Stage Ripple Carry Binary Counter IC (DIP-16 Package)]()
CD4020 14-Stage Ripple Carry Binary Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Type: Binary
- Function: Counter
- DC Supply Voltage (VDD): 3 to 18
- Noise margin (over full package-temperature range)
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Storage Temperature (TS): -55°C to +125°C
-
![CD4021 8-Stage Static Shift Registers IC DIP-16]()
CD4021 8-Stage Static Shift Registers IC DIP-16
Rs. 29.00Specification:-
- DC Supply Voltage Range, (VDD): -0.5V to +20V
- Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
- DC Input Current, Any One Input: ±10mA
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range (TSTG): -65°C to +150°C
- Lead Temperature (During Soldering): +265°C
-
![CD4012 Dual 4-Input NAND Gate IC (DIP-14 Package)]()
CD4012 Dual 4-Input NAND Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage at Any Pin: -0.3V to VDD +0.3V
- Operating Temperature Range: -40°C to + 85°C
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation: Dual-In-Line: 700 mW
- Operating Range: VSS +3.0V to VSS +15V
- Lead Temperature: 260°C
