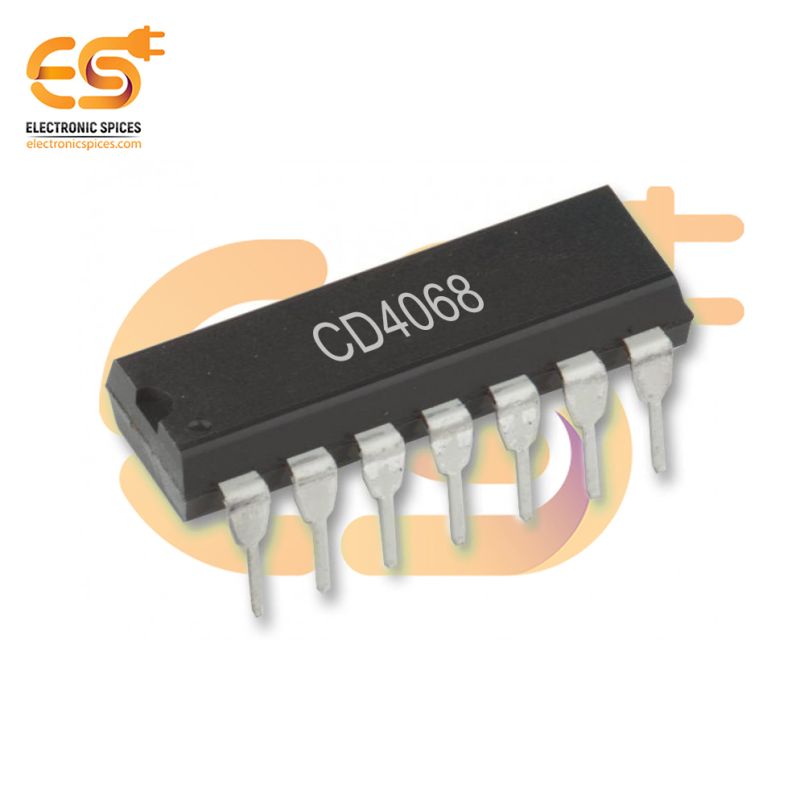

CD4068 CMOS 8-Input NAND/AND Gate IC (DIP-14 Package)

CD4068 CMOS 8-Input NAND/AND Gate IC (DIP-14 Package)

The CD4068 is a CMOS 8-input NAND/AND gate IC housed in a DIP-14 package, designed for complex logic operations where multiple input conditions need to be evaluated simultaneously. This IC provides a single 8-input NAND gate that performs a logical NAND operation, producing a low (logic "0") output only when all eight inputs are high. For all other input combinations, the output will be high (logic "1"). Additionally, the device can be used as an 8-input AND gate by applying an external pull-up resistor to configure it for a positive logic state. The CD4068 is typically used in applications that require the combination of multiple logic signals, such as control systems, digital processing, decision-making, and data routing. Its 8-input configuration allows for the processing of large numbers of conditions or signals at once, which can help reduce the need for additional gates in complex circuits. The IC operates over a wide supply voltage range of 3V to 18V, ensuring compatibility with different logic systems and making it versatile in various applications. It uses CMOS technology, ensuring low power consumption, high noise immunity, and reliable operation in power-sensitive or noise-prone environments.

Features:-

The CD4068 is a CMOS 8-input NAND/AND gate IC housed in a DIP-14 package, designed for complex logic operations where multiple input conditions need to be evaluated simultaneously. This IC provides a single 8-input NAND gate that performs a logical NAND operation, producing a low (logic "0") output only when all eight inputs are high. For all other input combinations, the output will be high (logic "1"). Additionally, the device can be used as an 8-input AND gate by applying an external pull-up resistor to configure it for a positive logic state. The CD4068 is typically used in applications that require the combination of multiple logic signals, such as control systems, digital processing, decision-making, and data routing. Its 8-input configuration allows for the processing of large numbers of conditions or signals at once, which can help reduce the need for additional gates in complex circuits. The IC operates over a wide supply voltage range of 3V to 18V, ensuring compatibility with different logic systems and making it versatile in various applications. It uses CMOS technology, ensuring low power consumption, high noise immunity, and reliable operation in power-sensitive or noise-prone environments.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Buffered Inputs and Outputs
